ON Semiconductor TVS5501V10MUT5G Product Overview

The TVS5501V10MUT5G is a robust transient voltage suppressor (TVS) diode from ON Semiconductor, designed to protect sensitive electronic components from voltage spikes and surges. This TVS diode is an essential component for modern electronics, providing reliable protection against overvoltage transient phenomena such as Electrostatic Discharge (ESD), Electrical Fast Transients (EFT), and lightning-induced surges.

Key Features of TVS5501V10MUT5G

• Stand-off Voltage: The TVS5501V10MUT5G offers a stand-off voltage of 5.5V, making it suitable for a wide range of applications that require voltage regulation and protection.
• Peak Pulse Power: It is capable of handling peak pulse power dissipation of 10 Watts for an 8/20μs waveform, ensuring protection against high energy transients.
• Low Clamping Voltage: The device features a low clamping voltage, which is crucial for protecting sensitive circuits by limiting the voltage to a safe level during transient events.
• Low Leakage Current: With a low leakage current, this device ensures minimal power loss when the system is in standby mode, making it energy efficient.

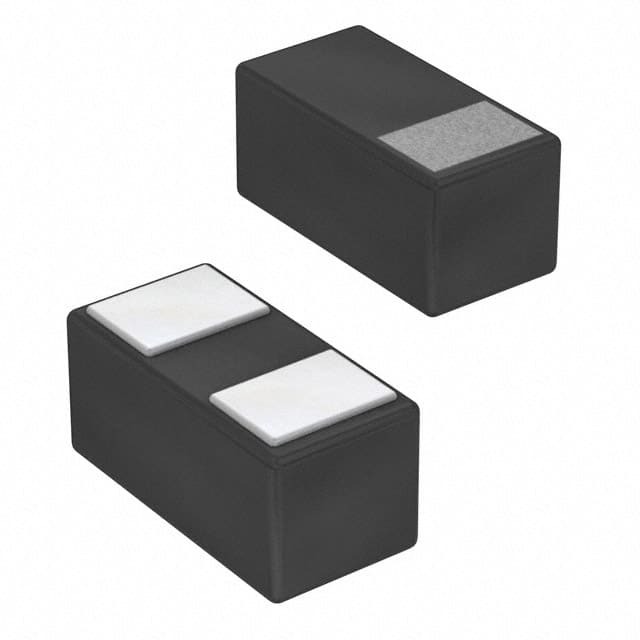

• Compact Package: The TVS5501V10MUT5G comes in a small, leadless SOD-723 package, which is ideal for space-constrained applications.
• RoHS Compliant: This product complies with the RoHS directive, which means it is free from hazardous substances, making it environmentally friendly and suitable for use in various global markets.

Applications

The TVS5501V10MUT5G is designed for use in a variety of applications that require transient voltage protection. These include:

• Portable Electronics
• Data Lines
• Power Supply Lines
• Sensor Protection
• Industrial Controls
• Consumer Electronics

Reliability and Performance

ON Semiconductor is known for its commitment to quality and reliability. The TVS5501V10MUT5G is no exception, offering exceptional performance and protection for electronic systems. Its fast response time and robust design ensure that it can handle even the most demanding transient voltage conditions, keeping your electronics safe and operational.

With its combination of features, the TVS5501V10MUT5G from ON Semiconductor is an excellent choice for designers looking to enhance the durability and longevity of their electronic products.
