The TIP29B is a versatile and robust NPN bipolar junction transistor (BJT) developed by ON Semiconductor, a leading figure in the semiconductor industry. This transistor is designed to cater to a wide array of applications, making it a staple component in the electronics field.

Key Features

• Voltage and Power Handling: The TIP29B is capable of withstanding collector-emitter voltages up to 60V, with a collector-base voltage of 80V. It is designed to dissipate power up to 30 watts, ensuring reliable operation in high-power circuits.
• Current Capacity: This transistor can handle continuous collector currents up to 1A, which makes it suitable for medium power applications.
• High Gain Bandwidth Product: With a transition frequency of 3MHz, the TIP29B offers a high gain bandwidth product, enabling its use in high-speed switching applications.

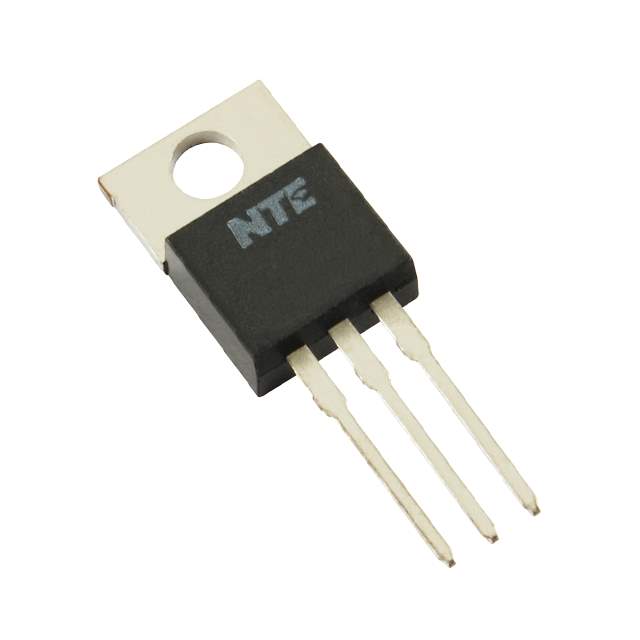

• Robustness: The device is encapsulated in a TO-220 package, known for its high thermal efficiency and mechanical durability. This ensures the TIP29B can operate reliably even in harsh conditions.

Applications

The TIP29B is a general-purpose transistor that can be employed in a variety of electronic circuits. Its applications range from simple switching operations to more complex uses such as:

• Power regulators
• Audio amplifiers
• Signal amplification
• Motor control circuits
• Switching power supplies

Quality and Reliability

ON Semiconductor is committed to providing high-quality components that meet rigorous industry standards. The TIP29B transistor is manufactured with state-of-the-art technology ensuring both performance and endurance. Customers can trust in the reliability of this component for their critical designs.

Environmental Compliance

ON Semiconductor understands the importance of environmental sustainability. The TIP29B is produced with materials that comply with RoHS (Restriction of Hazardous Substances) directives, making it a safe choice for environmentally conscious applications.
