Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr ON Semiconductor
Package Tape & Reel
Product Status Not For New Designs
Technology Schottky
Voltage - DC Reverse (Vr) (Max) 80 V
Current - Average Rectified (Io) 3A
Voltage - Forward (Vf) (Max) @ If 850 mV @ 3 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 500 µA @ 80 V
Mounting Type Surface Mount
Package / Case DO-214AB, SMC
Supplier Device Package SMC (DO-214AB)
Operating Temperature - Junction -55°C ~ 150°C
Base Product Number SS38
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 676367-SS38
Ultra Librarian 3D Model Ultra Librarian SS38 CAD Model

Description

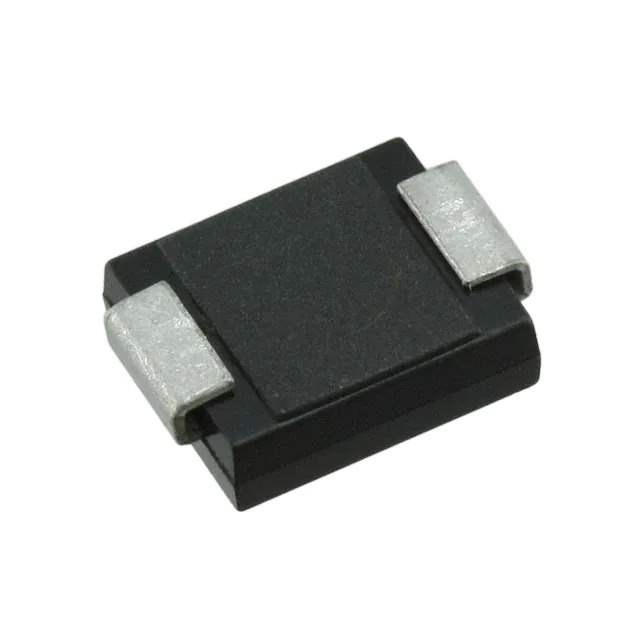

ON Semiconductor SS38 Schottky Barrier Rectifier

The ON Semiconductor SS38 is a high-performance Schottky Barrier Rectifier that offers efficient and reliable operation for a variety of applications. This rectifier is designed to provide low forward voltage drop while maintaining a high current capability, making it an ideal choice for high-frequency and energy-sensitive environments.

Key Features

  • High Current Capability: The SS38 is capable of conducting up to 3 amps of continuous current, which makes it suitable for high current applications.
  • Low Forward Voltage Drop: With a low forward voltage drop, this rectifier ensures minimal power loss and improves efficiency, which is critical for power-sensitive designs.
  • High Surge Current Capability: It can withstand high surge currents, ensuring durability and reliability in applications with potential for surges or spikes in current.
  • Operating Temperature Range: The SS38 can operate over a wide temperature range from -65°C to 150°C, accommodating various environmental conditions.
  • Lead-Free and RoHS Compliant: ON Semiconductor is committed to environmental sustainability, and the SS38 reflects this with its lead-free and RoHS-compliant design.

Applications

The SS38 is versatile and can be used in a broad range of applications, including:

  • Power supply units
  • DC-DC converters
  • Automotive applications
  • Freewheeling and polarity protection
  • Reverse battery protection
  • Energy management

Package and Quality Assurance

The SS38 is available in the DO-214AB (SMC) package, which is designed for surface mount applications. Its compact size and low profile make it suitable for space-constrained applications. ON Semiconductor ensures that each SS38 rectifier meets rigorous quality assurance standards, providing designers with a reliable component for their electronic designs.

In summary, the ON Semiconductor SS38 Schottky Barrier Rectifier is a high-quality, high-performance solution that combines efficiency, reliability, and environmental responsibility. Its robust design and versatile application range make it an excellent choice for engineers looking to optimize their power management systems.
