Products specifications

Category Circuit Protection>TVS - Diodes
Mfr onsemi
Package Tape & Reel (TR)
Product Status Obsolete
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 8.5V
Voltage - Breakdown (Min) 9.44V
Voltage - Clamping (Max) @ Ipp 14.4V
Current - Peak Pulse (10/1000µs) 34.7A
Power - Peak Pulse 500W
Power Line Protection No
Applications General Purpose
Mounting Type Through Hole
Package / Case DO-204AC, DO-15, Axial
Supplier Device Package DO-15
Base Product Number SA8V5
Standard Package 4,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1298752-SA8V5CA
Ultra Librarian 3D Model Ultra Librarian SA8V5CA CAD Model

Description

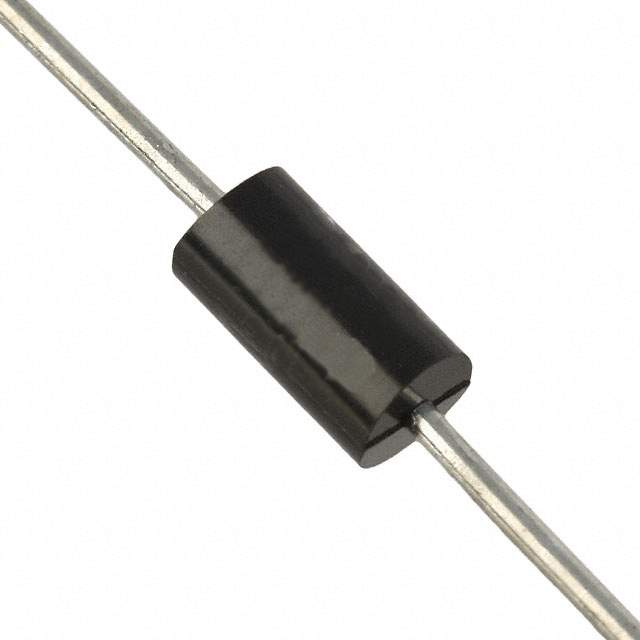

The SA8V5CA from ON Semiconductor is a robust transient voltage suppressor (TVS) diode designed to protect sensitive electronic equipment from voltage spikes and transients induced by lightning and other transient voltage events. As a bidirectional TVS device, it is capable of clamping both positive and negative voltage transients to a safe level, preventing damage to connected components.

Key Features

  • Peak Pulse Power Dissipation: Capable of handling 500W (10/1000μs waveform) peak pulse power dissipation, the SA8V5CA ensures reliable protection for your circuits against high energy transients.
  • Stand-off Voltage: With a stand-off voltage of 8.5V, it is suitable for a variety of applications that operate on standard logic levels.
  • Breakdown Voltage: This TVS diode has a breakdown voltage range from 9.44V to 10.4V, providing a precise protection window for your devices.
  • Low Leakage Current: It features a low leakage current, minimizing power loss when the device is in standby mode and enhancing overall energy efficiency.
  • Response Time: The SA8V5CA boasts an exceptionally fast response time to transient events, typically in the picosecond range, ensuring quick and effective voltage clamping.
  • Package: Available in an axial-lead package, it is easy to install in a wide range of through-hole PCB mounting scenarios.
  • Environmental Compliance: It is RoHS compliant, ensuring adherence to environmental standards and regulations for electronic components.

Applications

The SA8V5CA is ideal for protecting sensitive electronics in various applications including:

  • Industrial control systems
  • Communication systems
  • Automotive electronics
  • Power supply circuits
  • Consumer electronics

ON Semiconductor's commitment to quality and reliability makes the SA8V5CA a preferred choice for designers looking to enhance the durability and longevity of their electronic systems. With its excellent clamping capability, low leakage, and fast response time, this TVS diode is an essential component for any application requiring robust transient voltage suppression.
