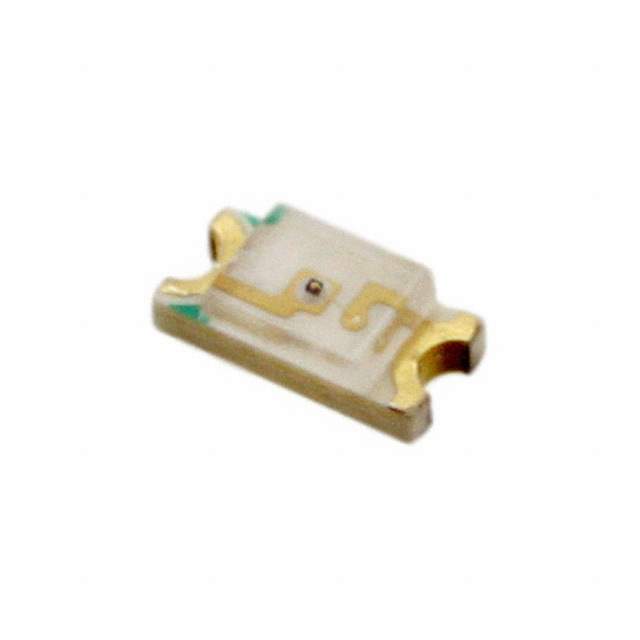

ON Semiconductor QTLP650D3TR LED

The QTLP650D3TR from ON Semiconductor is a high-performance, surface-mount technology (SMT) LED that delivers exceptional brightness and reliability, making it an excellent choice for a wide range of lighting applications. This LED is designed to meet the rigorous demands of industrial, automotive, and consumer markets, where consistent light output and long service life are critical.

Key Features

• Color and Intensity: The QTLP650D3TR LED emits a vibrant red color with a wavelength typically around 626 nm, ensuring high visibility and clear indication for various applications.
• Package: Housed in a compact 0603 package, this LED is ideal for space-constrained applications. Its small footprint allows for high-density mounting, which is beneficial for designs requiring multiple LEDs in close proximity.
• Power Efficiency: With its low power consumption, the QTLP650D3TR is energy-efficient, making it suitable for battery-powered devices or energy-saving applications.
• Viewing Angle: It offers a wide viewing angle of 120 degrees, providing uniform light distribution and making it versatile for various lighting designs.
• Luminous Intensity: The LED delivers a luminous intensity that ensures it stands out in different lighting conditions, whether used for backlighting, indicator lights, or other signaling applications.
• Drive Current: The recommended forward current is 20 mA, with a maximum forward current of 25 mA, allowing for flexibility in design and ensuring compatibility with a wide range of drive circuits.

Applications

The QTLP650D3TR is suitable for a diverse set of applications, including:

• Automotive interior and dashboard lighting
• Backlighting for LCDs, switches, and symbols
• Indicator and backlight in office equipment
• Consumer electronics
• Portable devices
• Signal and symbol illumination

With its robust design and versatile features, the QTLP650D3TR LED from ON Semiconductor is an excellent choice for designers looking to incorporate a reliable and efficient light source into their electronic projects.
