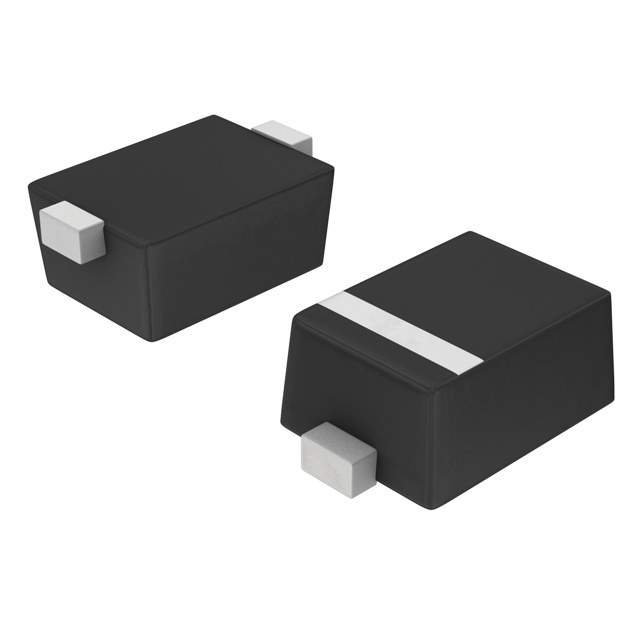

ON Semiconductor NZ9F9V1ST5G - Zener Voltage Regulator Diode

The ON Semiconductor NZ9F9V1ST5G is a highly reliable, precision Zener voltage regulator diode designed for a wide range of applications. This diode provides a nominal Zener voltage of 9.1 volts, making it suitable for voltage regulation tasks in various electronic circuits. It is packaged in a compact SOD-923 surface-mount package, which is ideal for high-density circuit board designs.

Key Features:

• Zener Voltage: 9.1V with a tolerance of ±5%, offering precise voltage regulation.
• Power Dissipation: Capable of dissipating up to 200 mW, providing adequate power handling for most low-power applications.
• Package: The small SOD-923 surface-mount package is designed for space-constrained applications and allows for efficient PCB layout.
• Operating Temperature: This device can operate over a wide temperature range from -55°C to +150°C, ensuring reliability across various environmental conditions.
• Reverse Leakage Current: Exhibits low leakage current, enhancing the overall efficiency of the circuit.

Applications:

The NZ9F9V1ST5G Zener diode is versatile and can be used in a variety of applications, including:

• Voltage regulation modules in consumer electronics
• Overvoltage protection circuits
• Power management systems in portable devices
• Reference voltage sources in analog circuits
• Switching power supplies

Quality and Reliability:

ON Semiconductor is known for its commitment to quality and reliability, and the NZ9F9V1ST5G is no exception. It is manufactured to meet high industry standards, ensuring stable performance and longevity in a variety of electronic applications. The device is also RoHS compliant, minimizing the environmental impact by avoiding the use of hazardous substances.

Whether you're designing consumer electronics, industrial control systems, or portable devices, the ON Semiconductor NZ9F9V1ST5G Zener diode is an excellent choice for your voltage regulation needs.
