Product Overview: NZ9F12VST5G - ON Semiconductor

The NZ9F12VST5G is a high-performance, precision Zener diode designed and manufactured by ON Semiconductor, a leading semiconductor solutions provider. This discrete semiconductor product offers a Zener voltage of 12 volts, making it ideal for voltage regulation applications and ensuring stable performance in a variety of electronic circuits.

Key Features

• Zener Voltage: Precisely regulated at 12V, providing a reliable reference voltage for various applications.
• Power Dissipation: Capable of handling up to 500 mW of power dissipation, ensuring robust operation under a range of conditions.

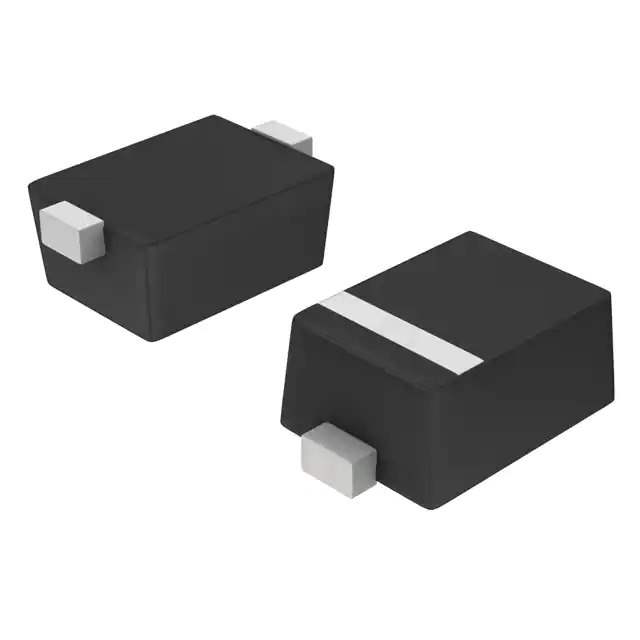

• Package: Comes in a small, surface-mount SOD-923 package, which is ideal for space-constrained applications.
• Low Leakage: Features low leakage current, enhancing the efficiency of the device and contributing to its overall performance.
• High Surge Capability: Designed to withstand surge currents, providing additional protection against transient voltage spikes.
• Operating Temperature Range: Suitable for operation within a wide temperature range of -55°C to +150°C, allowing for use in harsh environmental conditions.

Applications

The NZ9F12VST5G Zener diode is versatile and can be used in a wide array of applications, including:

• Voltage regulation modules
• Overvoltage protection circuits
• Switching power supplies
• Consumer electronics
• Industrial electronics
• Telecommunication systems

Quality and Reliability

ON Semiconductor is committed to delivering high-quality products. The NZ9F12VST5G is manufactured with rigorous quality control processes and is designed to meet the demanding standards of the electronics industry. Customers can rely on this Zener diode for consistent performance and durability in their applications.

Environmental Compliance

The NZ9F12VST5G complies with RoHS (Restriction of Hazardous Substances) directives, ensuring that it is free from harmful substances such as lead, mercury, and cadmium. This commitment to environmental sustainability makes it suitable for use in eco-friendly products and applications.
