Overview of NUF6010MUT2G from ON Semiconductor

The NUF6010MUT2G is a highly integrated solution designed by ON Semiconductor, aiming to provide exceptional protection for electronic devices against Electrostatic Discharge (ESD) and other voltage-induced transient events. This compact and versatile component is ideal for safeguarding sensitive circuits found in a wide range of applications, including mobile phones, portable electronics, and data lines in communication interfaces.

Key Features

• ESD Protection: The NUF6010MUT2G offers robust ESD protection that meets the IEC61000-4-2 standard, ensuring that devices remain safe from the damaging effects of sudden electrostatic discharges.
• Low Capacitance: With low input capacitance, this component is suitable for high-speed data lines, as it minimizes signal attenuation, allowing for reliable and fast data transfer without compromising signal integrity.
• Multiple Lines Protection: This device integrates six lines of protection in a single, compact MicroLeadFrame (MLF) package, providing a space-saving solution for contemporary electronic designs that demand efficiency and minimal footprint.
• Low Leakage Current: The NUF6010MUT2G exhibits an ultra-low leakage current, which is critical for battery-powered devices, as it helps to extend battery life and reduce power consumption.
• Application Versatility: Designed to be versatile, this ESD protection device is suitable for a range of applications, including USB 2.0, HDMI, SIM card interfaces, and other high-speed data lines.

Package and Compliance

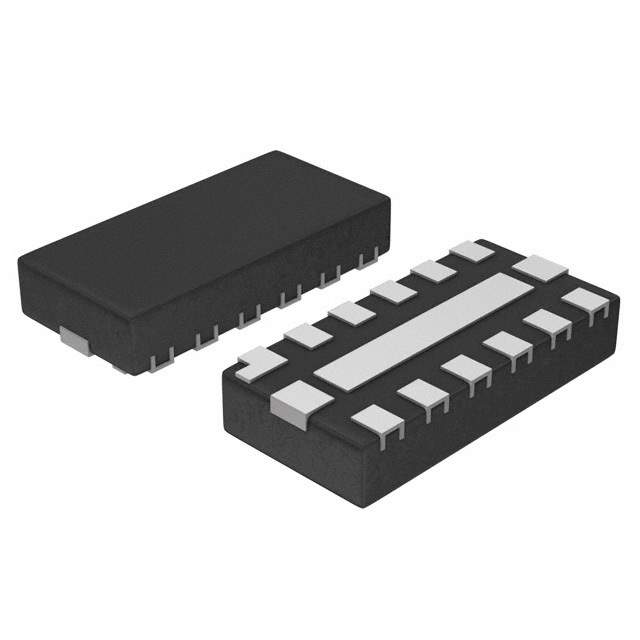

The NUF6010MUT2G comes in a small 2.0 x 1.25 mm µDFN package, which is lead-free and RoHS compliant, reflecting ON Semiconductor's commitment to environmental sustainability. The component's small size and compliance with environmental standards make it a responsible choice for modern electronic device manufacturers who are looking to minimize their ecological footprint while providing top-notch protection for their products.

Conclusion

ON Semiconductor's NUF6010MUT2G is a superior choice for designers looking to enhance the durability and longevity of their electronic devices. Its advanced ESD protection, combined with low capacitance, multi-line integration, and low leakage current, makes it an indispensable component in protecting sensitive circuits from transient voltage events. The compact and environmentally friendly package further ensures that this ESD protection device can be incorporated into the latest electronic innovations with ease and responsibility.
