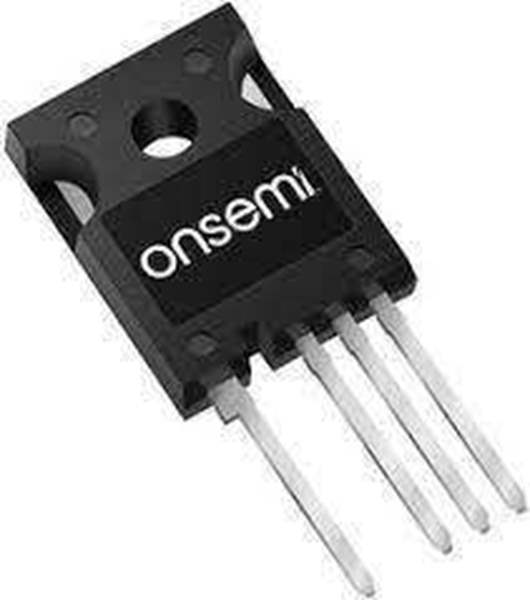

The NTH4L040N120M3S is a state-of-the-art Silicon Carbide (SiC) Metal-Oxide-Semiconductor Field-Effect Transistor (MOSFET) designed and manufactured by ON Semiconductor, a leader in semiconductor solutions. This high-performance transistor is engineered for applications where efficiency and power density are critical, making it an ideal choice for a wide range of power systems.

Key Features

• High Blocking Voltage: With a drain-to-source voltage (V_DS) of 1200V, this MOSFET can handle high voltage applications, offering designers the flexibility to use it in a variety of demanding environments.
• Low On-Resistance: The device boasts a low on-resistance (R_DS(on)) of only 40 mΩ, which means it has very low conduction losses, enhancing overall system efficiency.
• Fast Switching Speed: The NTH4L040N120M3S is designed for fast switching applications, reducing switching losses and improving performance in high-frequency power conversion systems.
• Robust Body Diode: The built-in SiC Schottky body diode offers excellent reverse recovery characteristics, which is crucial for hard-switching applications and can significantly reduce stress on the device.

Applications

The ON Semiconductor NTH4L040N120M3S is suitable for a variety of applications, including:

• Electric Vehicle (EV) charging stations
• Solar power inverters
• Uninterruptible power supplies (UPS)
• High-performance computing
• Switch-mode power supplies (SMPS)

Performance and Reliability

ON Semiconductor's NTH4L040N120M3S is designed to deliver exceptional performance and reliability. Its robust design ensures stable operation even under harsh conditions, making it a reliable choice for critical power applications. The MOSFET's package is optimized for excellent thermal performance, ensuring the device operates within its temperature range for extended periods, thus prolonging its lifespan and reducing the need for additional cooling solutions.

Environmental and Quality Standards

Committed to environmental stewardship and quality, ON Semiconductor ensures that the NTH4L040N120M3S meets industry standards for environmental compliance and quality. This includes adherence to RoHS directives, ensuring that the product is free from harmful substances and is safe for use in electronic equipment.
