The NLX2G16CMX1TCG is a high-performance, dual-input, single-output logic gate IC designed and manufactured by ON Semiconductor, a leading provider of semiconductor-based solutions. This particular IC is a part of the advanced high-speed CMOS family, offering the latest in logic gate technology with optimized power and speed.

Key Features

• Logic Type: Dual 2-Input AND Gate

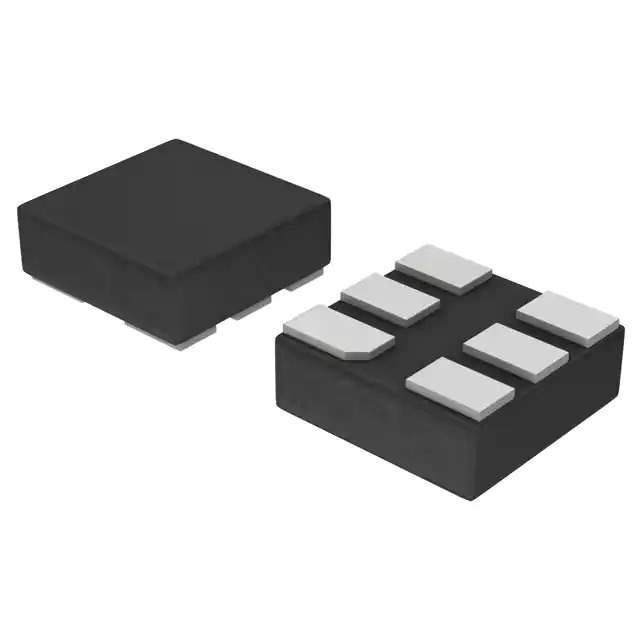

• Package: Ultra-small leadless package measuring 1.45 x 1.0 mm
• Operating Voltage Range: 1.65V to 5.5V, which allows for use in a wide range of applications
• High-Speed Operation: With a typical propagation delay (tpd) of just 3.6ns at 5V, it is suitable for high-speed applications.
• Power Efficiency: Low quiescent current (ICC) and low power consumption make it ideal for battery-operated and power-sensitive devices.
• Output Drive Capability: Capable of driving 8mA at 5V, providing sufficient current for many standard applications.
• Temperature Range: Operational from -55°C to +125°C, ensuring reliability across various environmental conditions.

Applications

The NLX2G16CMX1TCG is versatile and can be used in a variety of electronic circuits. Its high-speed performance and low power consumption make it suitable for portable and battery-powered devices, as well as high-speed computing applications. Common applications include, but are not limited to, microprocessor systems, data processing, communication systems, and embedded systems where space and power efficiency are critical.

Quality and Reliability

ON Semiconductor is committed to delivering high-quality products. The NLX2G16CMX1TCG is produced with strict quality control processes, ensuring both reliability and performance. It is also supported by ON Semiconductor's technical documentation and customer support, providing designers with confidence in their choice of logic solutions.
