ON Semiconductor NLU1GT125MUTCG - Single Buffer Gate with 3-State Output

The NLU1GT125MUTCG from ON Semiconductor is a high-performance, single buffer gate featuring a three-state output, which is designed to provide a versatile and power-efficient solution for a wide range of applications. This advanced logic gate is part of ON Semiconductor's portfolio of low-voltage CMOS technology, which is renowned for its low power consumption and high-speed operation.

This particular device operates from a voltage range of 1.65V to 5.5V, making it suitable for interfacing with both 3.3V and 5V systems. Its broad voltage range and flexibility in power supply make it ideal for multi-voltage systems and battery-operated applications where power efficiency is crucial.

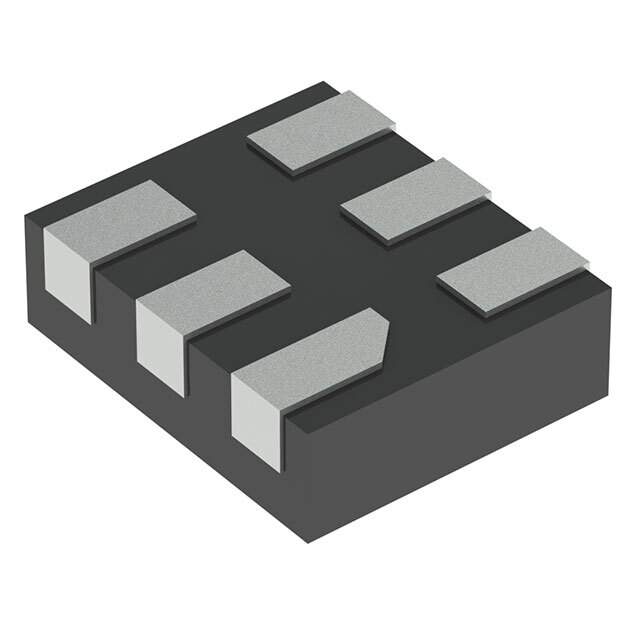

The NLU1GT125MUTCG comes in an ultra-small μDFN6 package, measuring just 1.0 x 1.45mm, which is perfect for space-constrained applications. Despite its compact size, it offers robust performance with 5Ω typical output resistance at 3.3V. This low output resistance ensures high driving capability while maintaining low power dissipation.

One of the key features of this buffer gate is its three-state output, which allows the output to be set to high, low, or high impedance. This feature is extremely useful for bus-oriented systems, as it enables multiple devices to share the same bus without interference. When the output enable (OE) input is high, the output goes into a high-impedance state, effectively disconnecting it from the bus or circuit it is connected to.

The NLU1GT125MUTCG is designed with ON Semiconductor's commitment to reliability and performance, ensuring it meets the stringent requirements for industrial and consumer electronic applications. Its ESD performance is tested to exceed JESD 22, guaranteeing resilience against electrostatic discharge events.

Whether you're designing complex computing systems, portable devices, or high-speed data communication equipment, the NLU1GT125MUTCG offers a versatile and reliable solution for your buffering needs. With its low power consumption, compact footprint, and high-performance characteristics, this buffer gate is an excellent choice for designers looking to optimize their systems for both space and power.
