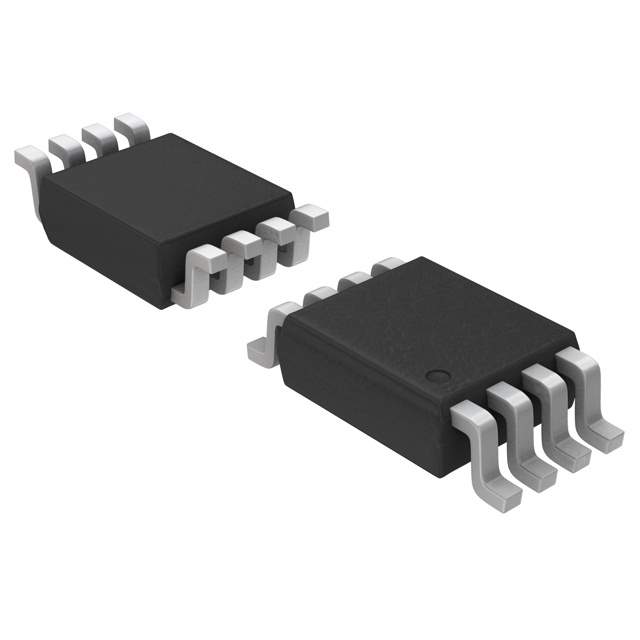

ON Semiconductor NL37WZ14USG Dual Schmitt Trigger Inverter

The ON Semiconductor NL37WZ14USG is a high-performance dual Schmitt Trigger inverter integrated circuit designed for applications requiring a high degree of precision and noise immunity. This device is a part of ON Semiconductor's extensive range of logic products, known for their reliability and efficiency.

The NL37WZ14USG features two independent inverters with Schmitt Trigger inputs, which allow it to convert an irregular or noisy input signal into a clean digital output. This characteristic is particularly beneficial in environments with a high level of electrical noise or when receiving signals from slow-rising or falling edges. The Schmitt Trigger functionality ensures that the output switches state only when the input passes through a specific threshold voltage, thereby providing a hysteresis effect that offers excellent noise immunity.

Constructed with Silicon Gate CMOS technology, this device offers superior speed and power efficiency, making it an ideal choice for battery-powered and low-power applications. The NL37WZ14USG operates at a voltage range from 1.65V to 5.5V, which allows for compatibility with a wide variety of logic levels and makes it suitable for interfacing with both 3.3V and 5V systems.

The compact US8 package of the NL37WZ14USG is space-saving and suitable for high-density circuit designs. This product is also characterized by its low power consumption, which is a critical feature for portable and energy-sensitive applications. Additionally, the NL37WZ14USG has an extended temperature range, ensuring reliable operation under varying environmental conditions.

Key features of the ON Semiconductor NL37WZ14USG include:

• High noise immunity due to Schmitt Trigger action
• Wide operating voltage range (1.65V to 5.5V)
• Low power consumption for energy-efficient designs
• Compact US8 package for space-constrained applications
• Compatible with 3.3V and 5V logic levels
• Extended temperature range for robust performance

Overall, the NL37WZ14USG is an excellent choice for designers looking for a highly reliable and efficient dual Schmitt Trigger inverter that can operate in challenging conditions while maintaining signal integrity.
