ON Semiconductor NL27WZ08US Dual 2-Input AND Gate

The ON Semiconductor NL27WZ08US is a high-performance dual 2-input AND gate integrated circuit, designed to operate with a power supply range of 1.65V to 5.5V. This makes it ideal for a wide array of applications, from portable electronics to more complex logic systems that require low power consumption and high speed. The NL27WZ08US is part of ON Semiconductor's advanced high-speed CMOS family, which is renowned for its robust performance and reliability.

Each of the two gates in the NL27WZ08US is independently configurable, allowing for flexible implementation in various logic circuits. The device features a significant drive capability, which enables it to drive large loads while maintaining fast switching speeds. With propagation delay times significantly lower than those of typical CMOS devices, the NL27WZ08US is perfect for high-speed operations.

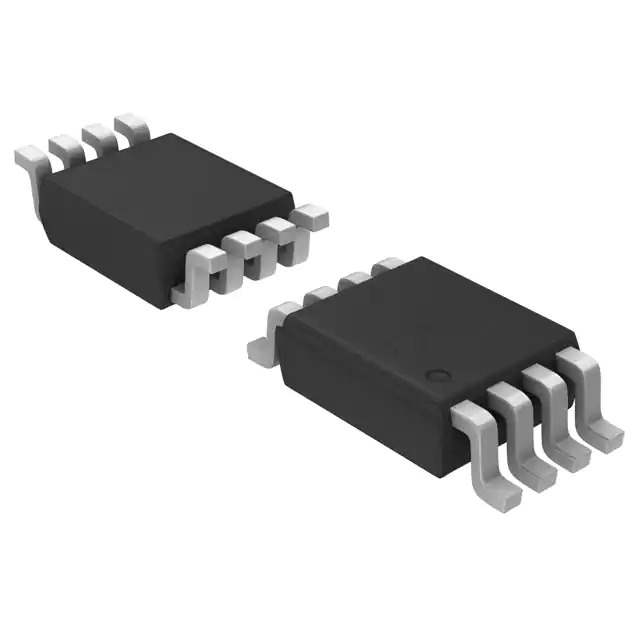

The NL27WZ08US comes in an ultra-small μPak package, which not only saves space on the PCB but also enables the design of compact electronic systems. Despite its small size, the package is designed for easy handling and manufacturing, ensuring that the device can be integrated into systems with minimal hassle.

Key features of the NL27WZ08US include:

• Operating Voltage Range: 1.65V to 5.5V
• High-Speed: Propagation Delay Time as low as 2.6ns at 5V
• High Output Drive: ±24 mA at 3.3V
• Low Power Consumption
• Ultra-Small μPak Package
• Independently Configurable Dual 2-Input AND Gates

Applications for the NL27WZ08US are diverse and include portable devices, power management systems, telecommunications, computers, and any other systems where space constraints and low power are crucial considerations. Its high-speed operation also makes it suitable for use in data processing and high-frequency signal processing.

ON Semiconductor's commitment to quality ensures that the NL27WZ08US meets the stringent requirements of modern electronic devices. With its combination of speed, power efficiency, and compact design, the NL27WZ08US is an excellent choice for designers looking to optimize their logic operations in a wide range of applications.
