The NL17SGU04P5T5G from ON Semiconductor is a high-performance, single-gate logic inverter designed to meet the needs of modern compact electronic applications. This advanced semiconductor device is a testament to ON Semiconductor's commitment to providing energy-efficient and reliable components for a wide range of uses.

Key Features

• Logic Type: The device is a unbuffered inverter, which means it provides a simple logic inversion function with no additional buffering stage.

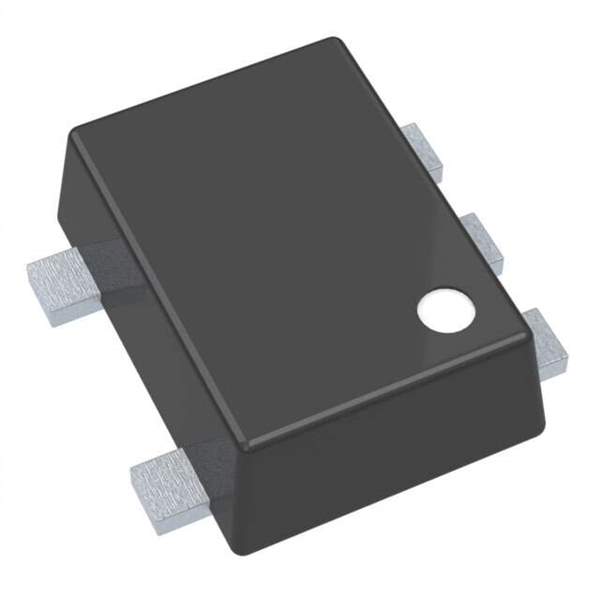

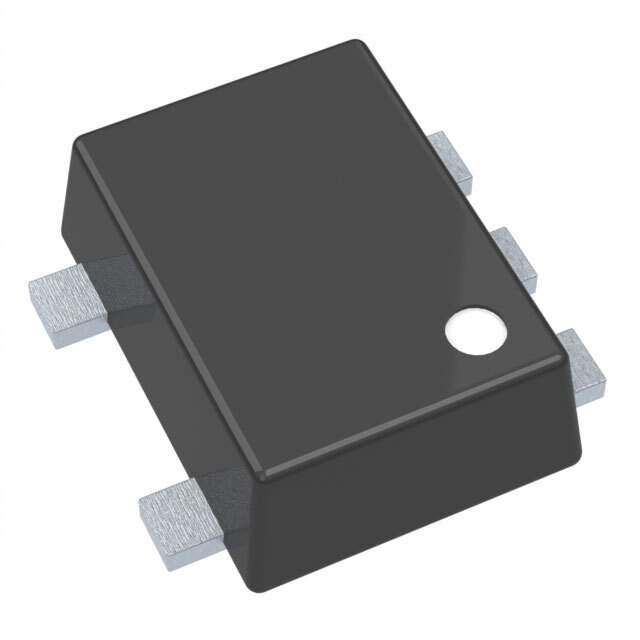

• Package: Housed in a space-saving SOT-953 package, the NL17SGU04P5T5G is ideal for applications where board space is at a premium.
• Operating Voltage Range: It operates over a broad voltage range from 0.9V to 3.6V, accommodating various low-voltage applications and ensuring compatibility with other logic levels.
• High-Speed Operation: The device supports high-speed operation, making it suitable for fast switching applications.
• Power Efficiency: Low static power consumption is a hallmark of the NL17SGU04P5T5G, making it an energy-efficient choice for battery-powered devices.
• Temperature Range: It is designed to operate over an industrial temperature range from -55°C to +125°C, ensuring reliability in harsh environments.

Applications

The NL17SGU04P5T5G is versatile and can be utilized in numerous applications. It is particularly well-suited for portable and battery-powered devices due to its low power consumption. Additionally, it can be used in logic level translation, oscillators, and as a general-purpose inverter in microcontroller-based systems.

Quality and Reliability

ON Semiconductor is known for its dedication to quality, and the NL17SGU04P5T5G is no exception. It is produced with the highest standards of manufacturing and is subject to rigorous testing to ensure it meets ON Semiconductor's reliability criteria. This component is RoHS compliant, indicating a commitment to environmental responsibility by restricting the use of certain hazardous substances in its production.
