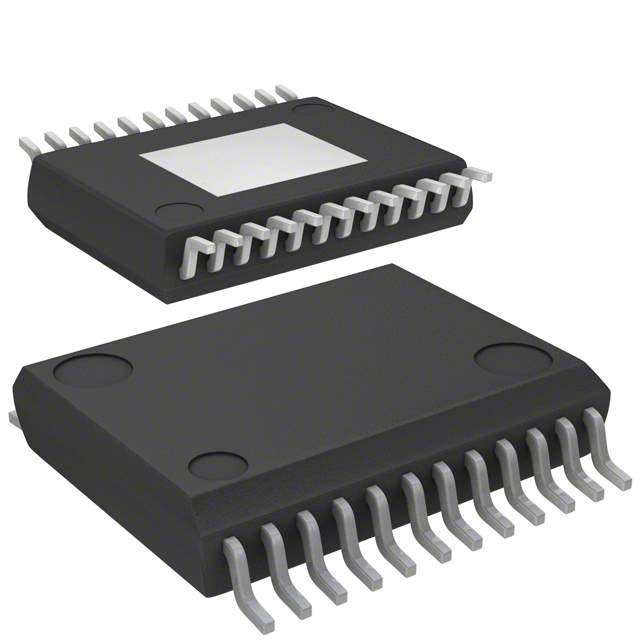

ON Semiconductor NCV7720DQAR2G Overview

The NCV7720DQAR2G is a versatile and reliable octal configurable low-side driver designed and manufactured by ON Semiconductor. It is engineered to cater to a broad range of applications, particularly those within the automotive sector, where it can operate as either a switch or a driver for relays, lamps, small DC motors, or other loads.

Key Features

• Multiple Channel Configuration: The NCV7720DQAR2G features eight low-side drivers that can be configured in parallel for higher current applications, offering flexibility in design and application.
• Advanced Protection: It includes various protection mechanisms such as overcurrent, overvoltage, undervoltage, and overtemperature protection, ensuring the device's longevity and reliability under harsh conditions.
• SPI Interface: The device can be controlled via a Serial Peripheral Interface (SPI), allowing for efficient communication and control within a system.
• Diagnostic Capabilities: Built-in diagnostic functions provide feedback on the status of each channel, which can be crucial for fault detection and system maintenance.
• Wide Operating Voltage Range: The NCV7720DQAR2G operates over a broad voltage range, making it suitable for various automotive and industrial applications.

Applications

The NCV7720DQAR2G's robust design and comprehensive feature set make it an ideal choice for a range of applications, including but not limited to:

• Automotive body control
• Automotive lighting systems
• Industrial control systems
• Robotics and automated machinery

Quality and Reliability

ON Semiconductor is known for its commitment to quality, and the NCV7720DQAR2G is no exception. It is designed to meet the stringent requirements of the automotive industry, including AEC-Q100 qualification for automotive-grade reliability. With its robust construction and comprehensive protection features, this device ensures stable and long-lasting performance in a variety of challenging environments.

In summary, the NCV7720DQAR2G from ON Semiconductor is a highly capable and reliable solution for driving and controlling a wide range of low-side loads. Its advanced features and diagnostics, combined with a flexible interface, make it an excellent choice for designers looking for a high-performance driver solution.
