The NC7S08M5X-L22090 is a high-quality 2-input AND gate integrated circuit (IC) produced by ON Semiconductor, a leader in energy-efficient innovations. This IC is part of the 7S series, which is renowned for its compact design and exceptional performance. The NC7S08M5X-L22090 is designed to meet the requirements of a wide range of digital applications, from consumer electronics to industrial automation systems.

Manufactured with advanced silicon gate CMOS technology, the NC7S08M5X-L22090 offers a robust combination of high speed and low power consumption. This makes it an ideal choice for battery-operated and power-sensitive applications. The device operates within a voltage range of 2V to 6V, ensuring compatibility with various logic levels and providing design flexibility for mixed-voltage systems.

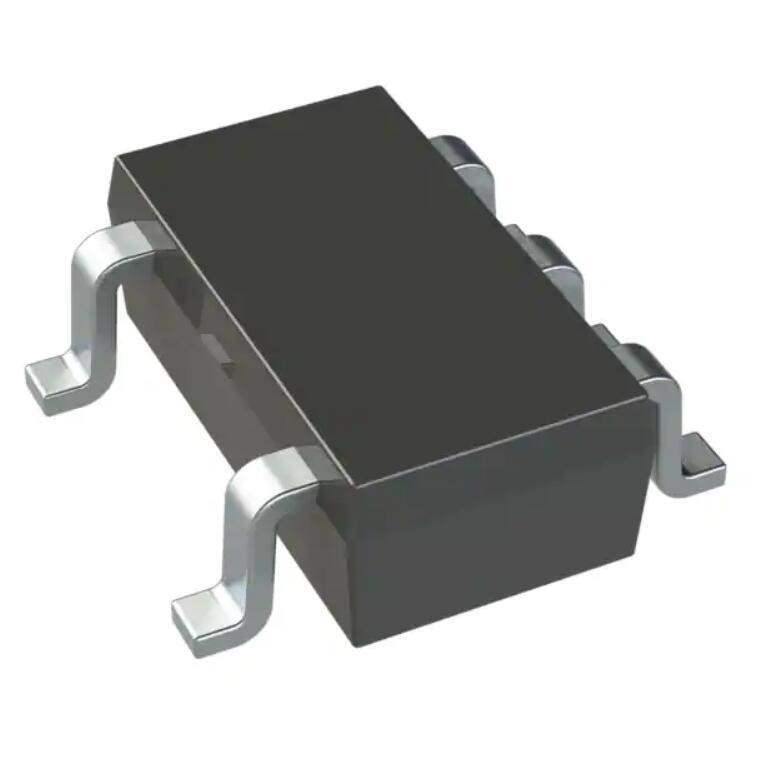

The NC7S08M5X-L22090 comes in a space-saving SOT-23-5 package, which is perfect for applications where board space is at a premium. Despite its small size, the IC does not compromise on performance, delivering fast propagation delays and minimal power dissipation during operation.

Key features of the NC7S08M5X-L22090 include:

• Logic Type: 2-Input AND Gate
• Operating Voltage Range: 2V to 6V
• High-Speed: t_PD 4.5 ns (Typ) at V_CC = 5V
• Low Quiescent Power: 1 µA Maximum
• High Noise Immunity: V_NIH = V_NIL = 28% V_CC (Minimum)
• Power-Down Protection Provided on Inputs
• Available in SOT-23-5 Package

The NC7S08M5X-L22090 is also characterized by its robustness, featuring balanced output drive with high current sinking capability. This ensures reliable operation in a wide array of digital circuits. Additionally, the device is designed to support the power-down mode when not in use, thereby conserving power for the overall system.

Whether you are designing a complex digital system or a simple logic control circuit, the ON Semiconductor NC7S08M5X-L22090 offers a combination of compactness, efficiency, and reliability that makes it an excellent choice for your AND gate logic requirements.
