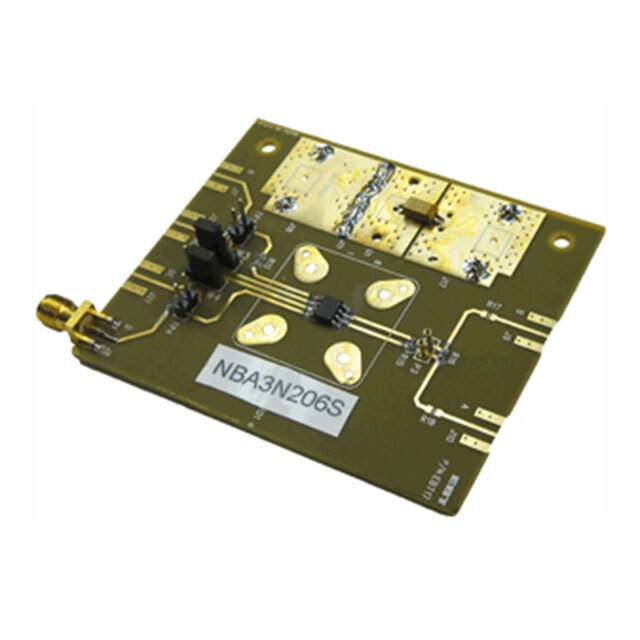

The NBA3N206SDGEVB is a comprehensive evaluation board designed by ON Semiconductor to demonstrate the capabilities and performance of the NBA3N206S, a high-speed, 3.3V differential X2SON Signal Conditioner. This advanced signal conditioning device is engineered to enhance signal integrity for high-speed data communication in automotive and industrial applications.

Key Features

• High-Speed Performance: The NBA3N206S integrated circuit supports fast signaling rates, making it ideal for applications requiring robust data transmission.
• Differential Signaling: Differential signaling technology helps to reduce electromagnetic interference (EMI) and crosstalk, thereby improving signal quality over long distances.
• Wide Operating Range: The device operates over a broad temperature range, suitable for harsh environments common in automotive and industrial settings.
• Low Power Consumption: Designed with energy efficiency in mind, the NBA3N206S minimizes power usage, which is critical for battery-powered and energy-sensitive applications.
• Compact Form Factor: The X2SON package is small and space-saving, making it a practical choice for compact system designs.

Applications

The NBA3N206SDGEVB is tailored for use in a variety of high-speed data communication applications, including but not limited to:

• Automotive infotainment and networking systems
• Industrial control and automation
• High-speed data acquisition systems
• Telecommunications equipment

Design and Development Support

ON Semiconductor provides extensive support for design and development with the NBA3N206SDGEVB. The evaluation board comes with comprehensive documentation, including schematics, layout files, and application notes to streamline the development process. Engineers can rapidly prototype and test their designs, accelerating time-to-market for their products.

Conclusion

The NBA3N206SDGEVB from ON Semiconductor is a powerful tool for developers looking to leverage the high-speed signal conditioning capabilities of the NBA3N206S IC in their designs. With its robust feature set and wide range of applications, this evaluation board is an excellent starting point for creating reliable and efficient communication systems in demanding environments.
