ON Semiconductor NB7NPQ7022MMUTXG Overview

The ON Semiconductor NB7NPQ7022MMUTXG is a high-performance, dual-channel differential clock/data crosspoint switch, designed for precision time and frequency transfer applications. Engineered to deliver exceptional signal integrity, this device is ideal for demanding environments where accurate clock distribution and data signals are crucial.

Key Features

• High Bandwidth: With a bandwidth of up to 7 GHz, the NB7NPQ7022MMUTXG supports high-speed data rates, ensuring that it can handle the latest high-speed interfaces and protocols.
• Differential LVPECL Outputs: The device features low-voltage positive emitter-coupled logic (LVPECL) outputs, offering reduced noise and improved signal integrity over single-ended signaling.
• Configurable Crosspoint Switch: The dual-channel configuration allows for flexible routing of signals, making it possible to switch between different data paths or clock signals as needed.
• Low Jitter: ON Semiconductor's advanced design minimizes jitter, providing a clean, stable signal that is essential for high-performance digital systems.
• Power Efficiency: The device is optimized for low power consumption, which is critical for energy-sensitive applications.

Applications

• Data Centers and Networking Equipment
• High-Speed Data Acquisition Systems
• Telecommunications Infrastructure
• Test and Measurement Equipment
• Professional Video and Broadcasting

Reliability and Quality

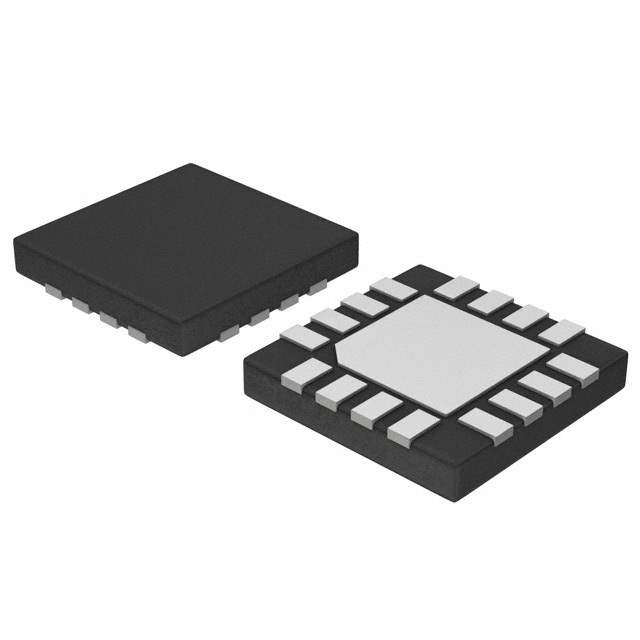

ON Semiconductor is renowned for its commitment to quality and reliability. The NB7NPQ7022MMUTXG is built to meet the stringent requirements of industrial and commercial applications. It operates over a wide temperature range and is packaged in a compact, surface-mount QFN package for easy integration into various circuit designs.

With its combination of high-speed performance, signal integrity, and design flexibility, the NB7NPQ7022MMUTXG from ON Semiconductor is a top-tier solution for any application requiring reliable and precise signal routing.
