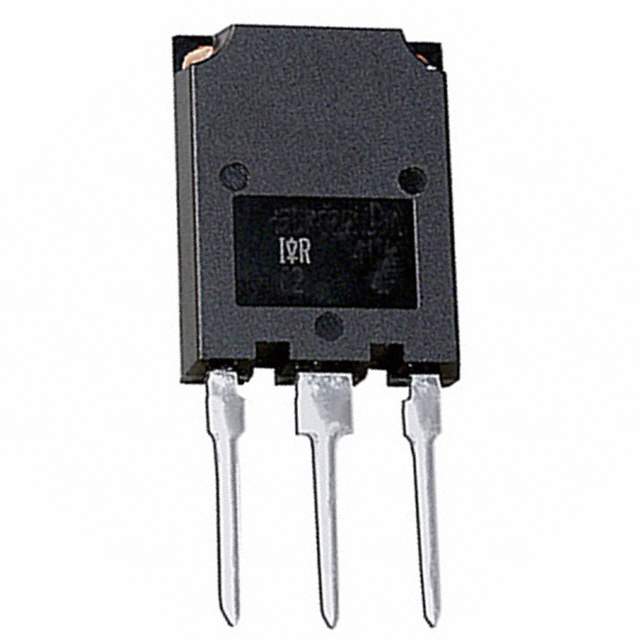

IRG4PSH71KPBF

Name: IRG4PSH71KPBF
Brand: Infineon Technologies
SKU: 462504
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	IRG4PSH71KPBF
Manufacturer	Infineon Technologies
Catalog	IGBTs - Single
Description	IGBT 1200V 78A 350W SUPER247
Datasheet	IRG4PSH71KPBF Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Discrete Semiconductor Products
Manufacturer	Infineon Technologies
Packaging	Bulk
Status	Obsolete(EOL)
VCEO Maximum Collector-Emitter Breakdown Voltage	1200V
Maximum Current Collector	78A
Pulsed Collector Current	156A
Collector-emitter saturation voltage(Max)	3.9V @ 15V, 42A
Maximum Power Dissipation	350W
Total Switching Energy(Ets)	2.35mJ (on), 3.14mJ (off)
Input Type	Standard
Gate Charge	410nC
Turn-on and Turn-off delay time	45ns/220ns
Testing Conditions	960V, 42A, 5 Ohm, 15V
Temperature Range - Operating	-55°C to 150°C (TJ)
Mounting	Through Hole
Case / Package	SUPER-247 (TO-274AA)
Win Source Part Number	1047324-IRG4PSH71KPBF
Popularity	Medium
Supply and Demand Status	Balance
Quantity per package	25
Ultra Librarian 3D Model	Ultra Librarian IRG4PSH71KPBF CAD Model

Description

The Infineon Technologies electronic component (product) with Id 464463 is an obsolete (EOL) product.

Supply and Demand Status: Balanced
Case/Package: SUPER-247 (TO-274AA)
IGBT Type: IGBT
Input Type: Standard
Gate Charge: 410nC
Maximum Current Collector: 78A
VCEO Maximum Collector-Emitter Breakdown Voltage: 1200V
Maximum Power Dissipation: 350W
Pulsed Collector Current: 156A
Collector-Emitter Saturation Voltage (max): 3.9V @ 15V, 42A
Total Switching Energy(Ets): 2.35mJ (on), 3.14mJ (off)
Turn-On Delay Time: 45ns
Turn-Off Delay Time: 220ns
Testing Conditions: 960V, 42A, 5 Ohm, 15V
