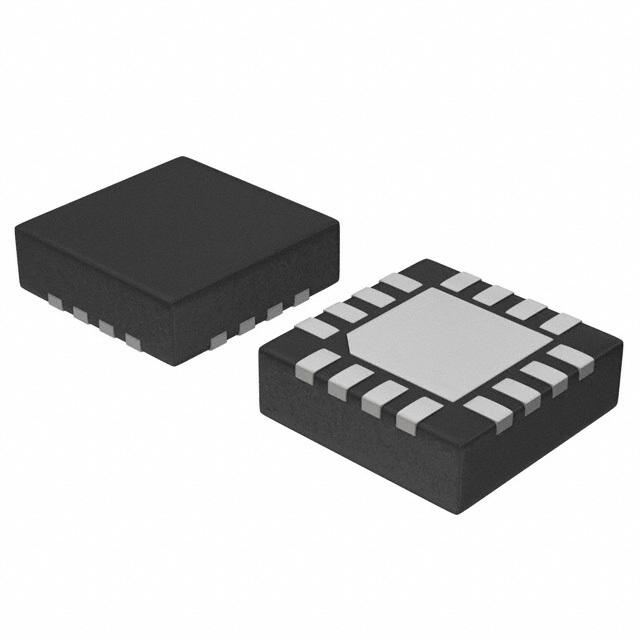

ON Semiconductor NB6L14MNG Clock Divider and Fanout Buffer

The ON Semiconductor NB6L14MNG is a high-performance, low-skew 1:4 Clock Divider and Fanout Buffer designed to meet the demanding requirements of communication and networking applications. This versatile device offers a perfect solution for systems requiring the distribution of a high-speed clock signal to multiple destinations while maintaining signal integrity and synchronization.

Key Features

• Frequency Division: The NB6L14MNG features a fully integrated ÷2, ÷4, and ÷8 selectable clock frequency division capability, providing flexible options to scale down the input clock frequency as needed.
• Low Skew Outputs: It boasts ultra-low output skew, which ensures that the clock signals are distributed with minimal timing discrepancies, a crucial factor for maintaining system reliability and performance.
• Differential Inputs/Outputs: The device supports differential LVPECL (Low Voltage Positive Emitter Coupled Logic) inputs and outputs, catering to high-speed digital systems that require differential signaling for noise immunity and improved signal integrity.
• Wide Operating Range: With an operating range from 2.375V to 3.465V, the NB6L14MNG can accommodate various power supply levels, offering design flexibility in mixed-voltage environments.
• High Frequency Operation: Capable of operating at clock frequencies up to 2.5 GHz, this clock divider and fanout buffer is ideal for high-frequency applications.
• Additional Functions: The device includes an asynchronous output enable function and a synchronous output enable function, allowing for precise control over the output states.

Applications

The NB6L14MNG is suitable for a range of applications, including but not limited to:

• Networking equipment such as routers, switches, and base stations
• Telecommunications infrastructure
• Data center servers and storage systems
• Test and measurement equipment
• High-speed data acquisition systems

With its advanced features and robust performance, the ON Semiconductor NB6L14MNG is an excellent choice for designers looking to enhance their system's clock signal distribution with precision and reliability.
