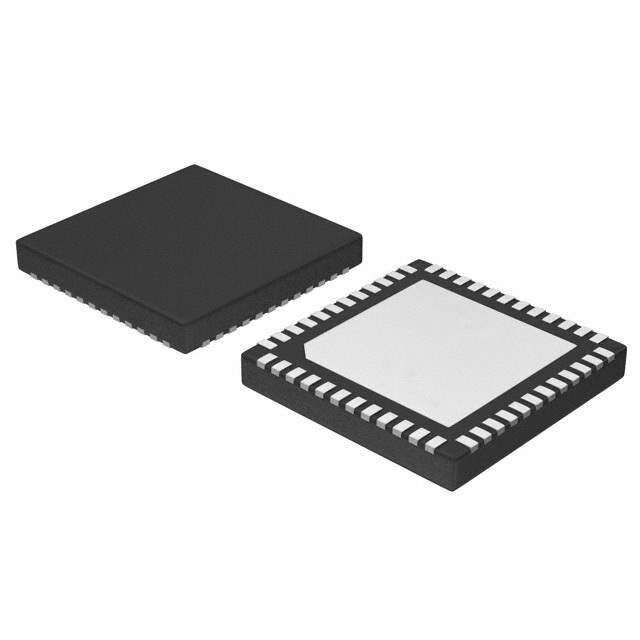

The ON Semiconductor NB3W800LMNG is a cutting-edge integrated circuit designed for high-speed differential signaling applications. This device is a perfect solution for systems that require reliable data transmission at high speeds, such as networking, telecommunications, and data storage equipment.

Key Features:

• High Data Rate: The NB3W800LMNG supports data rates up to 3.2 Gbps, making it suitable for high-speed data transfer applications.
• Differential Signaling: Utilizing low-voltage differential signaling (LVDS) technology, the device provides excellent noise immunity and low-power operation.
• Low Power Consumption: Designed with energy efficiency in mind, the NB3W800LMNG operates with a minimal power draw, reducing overall system power requirements.
• Small Form Factor: The device is housed in a compact 16-pin TSSOP package, allowing for high-density mounting and saving valuable board space.
• Industrial Temperature Range: The NB3W800LMNG can operate over an industrial temperature range of -40°C to +85°C, ensuring reliable performance in harsh environments.
• Integrated Termination Resistors: On-chip termination resistors provide impedance matching, which minimizes reflections and improves signal integrity.

Applications:

• High-speed data communications
• Networking equipment such as switches and routers
• Telecommunication infrastructure
• Data storage systems
• Backplane interconnects
• Point-to-point baseband data transmission

The NB3W800LMNG from ON Semiconductor is a robust and versatile solution for applications demanding high-speed differential data transfer. With its advanced features and reliable performance, it ensures that your data is transferred quickly, efficiently, and without compromise. Whether you are designing a new system or upgrading an existing one, the NB3W800LMNG provides the performance and reliability needed for today's high-speed communication networks.
