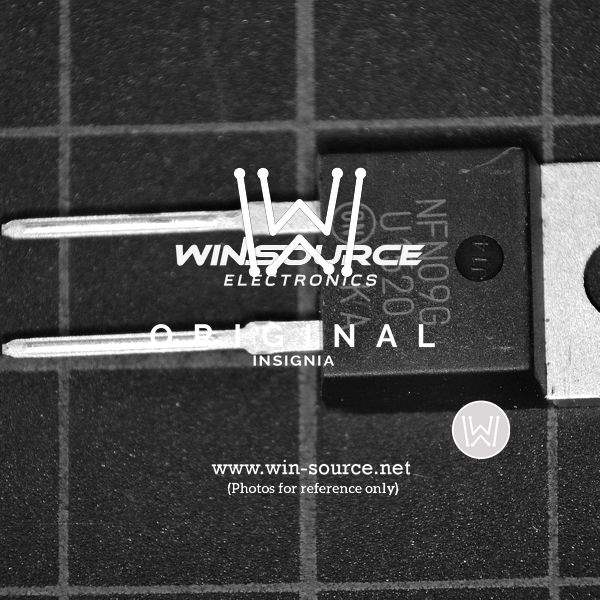

ON Semiconductor MUR1520G Ultrafast Rectifier

The ON Semiconductor MUR1520G is a state-of-the-art ultrafast rectifier, designed to cater to the demanding requirements of high-performance power supply systems. This robust rectifier is engineered to provide efficient and reliable operation, making it an ideal choice for applications requiring swift and efficient rectification of alternating currents.

Key Features

• Voltage Rating: The MUR1520G boasts a reverse voltage rating of 200 volts, providing a wide margin for various electronic applications.
• Current Capacity: With a forward current rating of 15 amperes, this device is capable of handling significant power without compromising on performance.
• Ultrafast Recovery Time: The ultrafast recovery time of 35 nanoseconds minimizes power losses and enhances the efficiency of the rectification process, which is crucial for high-speed switching applications.
• Low Forward Voltage Drop: The low forward voltage drop feature ensures reduced power dissipation, contributing to the overall energy efficiency of the system it is integrated into.
• High Surge Capacity: The MUR1520G can withstand surge currents, making it resilient against transient overcurrent conditions and enhancing its reliability.
• Robust Construction: Encased in a void-free, transfer-molded thermosetting plastic package, the MUR1520G is designed for rugged environments and ensures a robust and durable operation.
• Lead-Free and RoHS Compliant: The product adheres to environmental standards, being lead-free and compliant with the Restriction of Hazardous Substances (RoHS) directive.

Applications

The MUR1520G is suitable for a wide range of applications, including:

• Switch-mode power supplies (SMPS)
• Power factor correction (PFC) circuits
• Freewheeling diodes in converters and motor control circuits
• Snubber diode applications
• High-frequency rectification in consumer and telecom electronics

With its combination of high-speed performance, efficiency, and durability, the ON Semiconductor MUR1520G ultrafast rectifier is a reliable component for engineers and designers looking to optimize their power management solutions.
