ON Semiconductor MC33363ADWG - High Voltage Switching Regulator

The MC33363ADWG is a high-performance, high-voltage switching regulator designed and manufactured by ON Semiconductor. It is a versatile component that caters to a wide array of applications requiring efficient power conversion and management. This switching regulator is particularly well-suited for use in offline and DC-to-DC converter applications.

Featuring a robust design, the MC33363ADWG integrates a high-voltage startup circuit that allows for quick and reliable start-up. It operates at a switching frequency of up to 100kHz, which enables the use of smaller, more cost-effective transformers and filter components, thus reducing the overall size and cost of the power supply design.

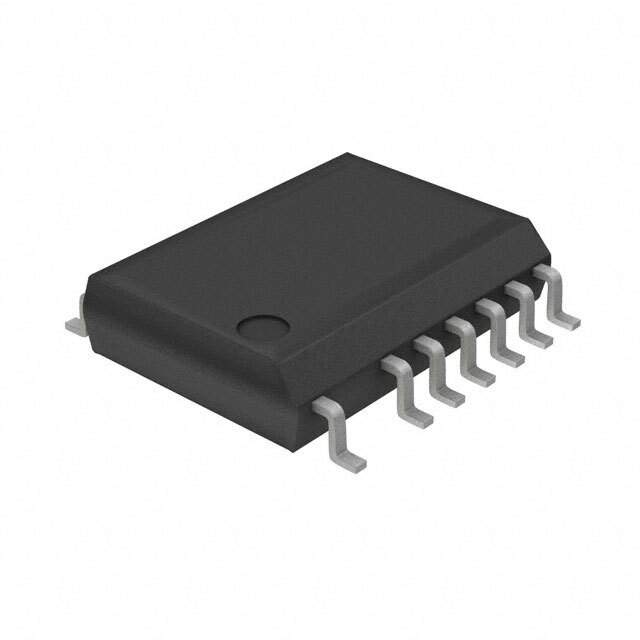

The device is encapsulated in a 16-pin SOIC-Wide package, which ensures a compact footprint while providing adequate thermal performance for handling higher power levels. Its built-in thermal shutdown, along with short-circuit and current-limit protection features, contributes to the safety and reliability of the end application by preventing damage from over-current or overheating conditions.

Key features of the MC33363ADWG include a high voltage of 700V on the output side, which is particularly beneficial for applications that require a direct connection to high-voltage sources. Additionally, it offers excellent line and load regulation capabilities, ensuring stable output even with varying input voltages and load conditions. The device also supports a wide input voltage range, making it highly adaptable to different power environments.

Applications for the MC33363ADWG are diverse and include power supplies for consumer electronics, industrial control systems, telecommunications equipment, and other electronic devices that demand efficient power regulation. Its performance and features make it an ideal choice for designers looking to optimize their power supply solutions for efficiency, size, and cost.

For detailed specifications, application circuits, and additional information, designers are encouraged to consult the official datasheet provided by ON Semiconductor. The MC33363ADWG represents a reliable and efficient solution for high-voltage power conversion in a wide range of electronic applications.
