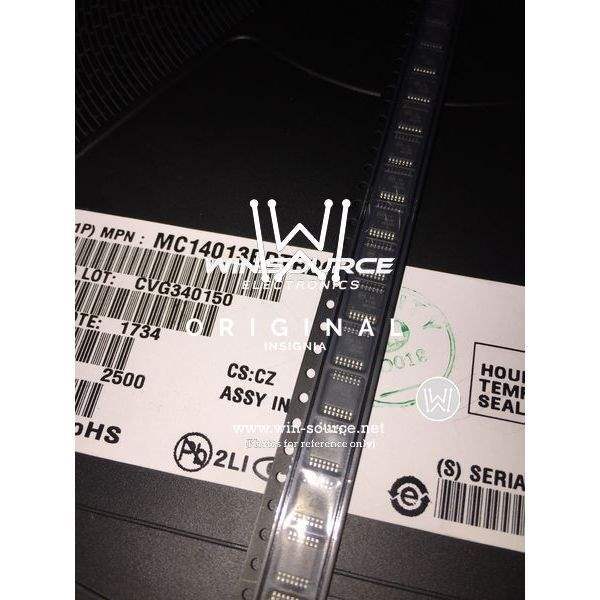

ON Semiconductor MC14013BDTR2G Dual Type D Flip-Flop IC

The ON Semiconductor MC14013BDTR2G is a high-quality integrated circuit designed for use in a wide range of digital applications. This versatile component is a dual type D flip-flop IC, which is a fundamental building block in digital electronics. It is commonly used for data storage, data transfer, frequency division, and various other logic applications that require the storage and manipulation of binary data.

This IC is part of the MC14000 series and is fabricated with MOS P-Channel and N-Channel enhancement mode devices in a single monolithic structure. These flip-flops are controlled by a clock signal and have the capability to store and maintain a binary state until directed to switch by the clock. The MC14013BDTR2G features a set/reset capability for each flip-flop, which allows for greater flexibility in control operations.

The package type for this IC is TSSOP-14 (Thin Shrink Small Outline Package with 14 leads), which makes it suitable for surface-mounted technology (SMT) and ideal for compact circuit designs. The device is also available in a tape and reel packaging format, facilitating automated assembly processes and making it a practical choice for mass production requirements.

Specifications of the MC14013BDTR2G include a wide supply voltage range, typically from 3V to 18V, which allows it to be used in various logic level environments. Its static operation ensures low power consumption, making it an energy-efficient choice for battery-operated devices. The IC also boasts high noise immunity and low propagation delay, which are crucial for reliable and fast operation in digital circuits.

ON Semiconductor's commitment to quality means that the MC14013BDTR2G IC is manufactured to meet high standards, ensuring stability and longevity in your electronic designs. Whether you're working on a simple project or a complex digital system, the MC14013BDTR2G from ON Semiconductor is an excellent choice for a reliable and versatile D flip-flop IC.

For detailed information, including electrical characteristics and pin configurations, please refer to the official datasheet provided by ON Semiconductor.
