ON Semiconductor M74VHC1GT04DTT1G Single Inverter

The M74VHC1GT04DTT1G is a high-performance CMOS single inverter produced by ON Semiconductor, a leading manufacturer in the semiconductor industry. This device is designed to deliver the perfect balance between speed and power consumption, making it an ideal choice for a vast array of digital applications.

Constructed with silicon gate CMOS technology, the M74VHC1GT04DTT1G ensures that it has the capability to operate at high speeds while maintaining low power dissipation. This inverter operates with a supply voltage range of 2.0V to 5.5V, which provides a flexible power supply solution and is compatible with TTL levels, allowing for easy integration into various circuit designs.

One of the key features of the M74VHC1GT04DTT1G is its high noise immunity, which is characteristic of VHC family devices. This makes it particularly suitable for environments where electrical interference might otherwise cause reliability issues. Additionally, the inverter boasts a significant drive capability, being able to drive 8 LSTTL loads, further showcasing its versatility in interfacing with older technology.

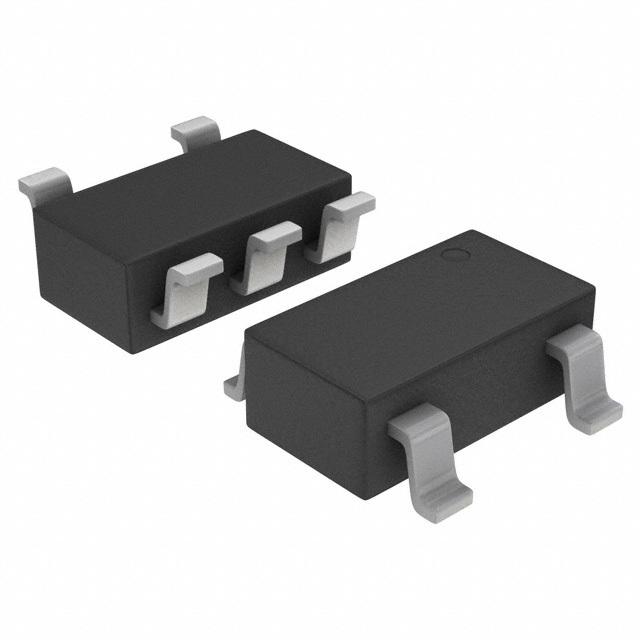

The ON Semiconductor M74VHC1GT04DTT1G comes in a compact SOT-23-5 package, which is ideal for space-constrained applications. Its small form factor does not compromise its performance and makes it a great choice for portable and miniature electronics where space is at a premium.

Other notable specifications include the low quiescent current, which is a testament to the device's efficiency, and the fast propagation delay that ensures quick response times in critical applications. The inverter also has balanced propagation delays and is specified for a wide operating temperature range, ensuring reliable operation in diverse environmental conditions.

In summary, the M74VHC1GT04DTT1G from ON Semiconductor is a robust, high-speed CMOS inverter that offers designers a mix of speed, power efficiency, and noise immunity. Its compatibility with TTL levels, ability to drive multiple loads, and compact packaging make it a versatile component suitable for a wide range of digital applications.
