ON Semiconductor LV8731V-TLM-H Motor Driver

The ON Semiconductor LV8731V-TLM-H is a high-performance, low-voltage motor driver that is designed to deliver efficient and precise control over small brushed DC motors and stepper motors. Its compact package and integrated features make it an ideal choice for portable and space-constrained applications across various industries including consumer electronics, automotive, and industrial automation.

Key Features:

• Motor Type Compatibility: The LV8731V-TLM-H is versatile and can be used with a wide range of motor types, including two-phase stepper motors, and supports micro-stepping for smooth and accurate positioning.
• Operating Voltage Range: This motor driver operates at a voltage range of 2.5V to 9V, catering to low-voltage applications and ensuring compatibility with a variety of power supplies.
• Output Current: It can deliver an output current of up to 1A per channel, providing sufficient power for a broad spectrum of small to medium-sized motors.
• Energy Efficiency: The device features low on-resistance (0.4Ω typical) H-bridge drivers, which enhances energy efficiency by minimizing power loss during operation.
• Built-in Protection: The LV8731V-TLM-H includes multiple protection features such as thermal shutdown, under-voltage lockout, and over-current protection, safeguarding the motor and the driver from potential damage.

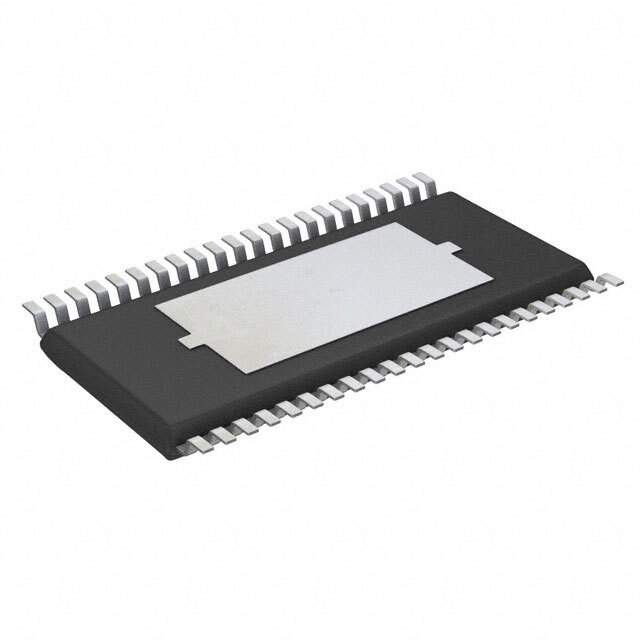

• Package: Packaged in a compact, surface-mount HTSSOP-B28 package, it is designed for easy integration into a wide range of electronic assemblies.

Applications:

The LV8731V-TLM-H is suitable for a variety of applications that require precise motor control. It is commonly used in:

• Battery-powered devices
• Office automation machines
• Home appliances
• Small robotics
• Point-of-sale machines

With its combination of performance, efficiency, and protection features, the ON Semiconductor LV8731V-TLM-H motor driver stands out as a reliable solution for designers looking to optimize their motor control systems.
