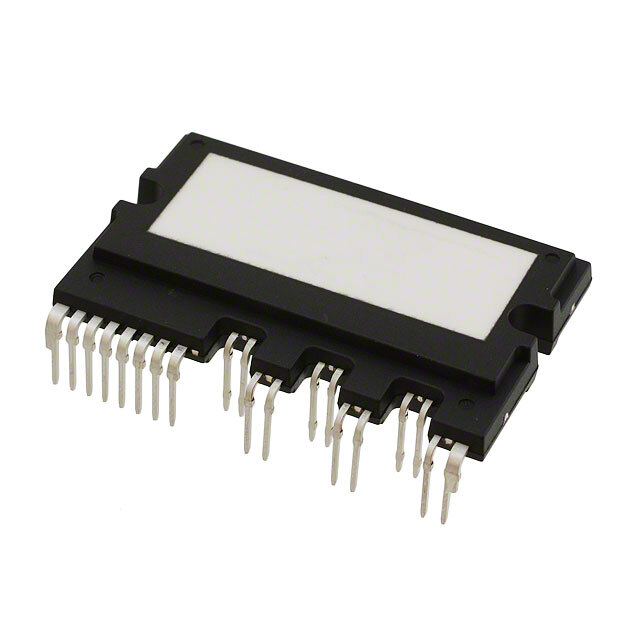

ON Semiconductor FSBB10CH120DF Smart Power Module

The FSBB10CH120DF from ON Semiconductor is a highly integrated, Motion SPM® 3 series intelligent power module that provides a compact and high-performance solution for driving three-phase motor applications. This module is designed to deliver efficient power control and is suitable for a wide range of applications including home appliances, industrial motors, and air conditioning units.

The FSBB10CH120DF module features a 1200V, 10A IGBT-based inverter with a built-in HVIC (High-Voltage Integrated Circuit) driver, which ensures reliable operation and simplifies the design process by reducing the number of external components required. The HVIC driver provides gate drive for the IGBTs, with under-voltage lockout and short-circuit protection to enhance system reliability and safety.

With its advanced Direct Bonded Copper (DBC) substrate technology, the FSBB10CH120DF offers excellent thermal performance and a robust design, enabling it to withstand harsh operating conditions. The module's small footprint and low profile package make it an ideal choice for applications where space is at a premium.

Key features of the FSBB10CH120DF include:

• Three-phase IGBT inverter bridge configuration
• Integrated high-voltage, high-speed bootstrap diodes
• Over-current and short-circuit protection
• Under-voltage lockout protection for all channels
• Isolation rating of 2500Vrms/min
• Low-loss and soft-switching characteristics
• Built-in thermistor for temperature monitoring

By integrating multiple functionalities into a single module, the FSBB10CH120DF simplifies the design and assembly process for motor drive applications. Its optimized layout ensures minimal stray inductance, resulting in better EMI performance and reduced noise levels. As a product from ON Semiconductor, a trusted leader in energy-efficient innovations, the FSBB10CH120DF Smart Power Module represents a reliable and efficient solution for advanced motor control systems.

Whether you're designing a new system or upgrading an existing one, the FSBB10CH120DF provides a high-quality, cost-effective solution that can help reduce time to market and improve overall system performance.
