ON Semiconductor FPF1108 Load Switch

The ON Semiconductor FPF1108 is a sophisticated load switch designed to provide a high-efficiency power management solution for portable and space-constrained applications. This compact device integrates multiple features to ensure optimal performance in managing power distribution within electronic circuits.

Key Features

• Low On-Resistance: The FPF1108 boasts a low on-resistance (R_ON) that minimizes power loss and improves efficiency, making it ideal for battery-powered devices.
• Input Voltage Range: It supports a wide input voltage range from 1.2V to 5.5V, accommodating various power requirements and ensuring compatibility with a diverse range of products.
• Current Limiting: The device includes an adjustable current limit to protect the power source and load from overcurrent conditions. This feature is critical for maintaining the longevity and reliability of electronic components.
• Quick Output Discharge: The FPF1108 also features a controlled quick output discharge transistor, which allows for the rapid discharge of the output capacitance when the switch is turned off, thus preventing any unwanted power residue in the system.
• Thermal Shutdown Protection: Thermal shutdown functionality ensures that the device automatically turns off if it reaches an unsafe operating temperature, thereby preventing thermal damage.
• Under-Voltage Lockout (UVLO): The UVLO feature prevents the switch from turning on when the input voltage is below a specific threshold, ensuring stable operation of the load switch and connected components.

Applications

The FPF1108 is versatile and can be used in a variety of applications, including but not limited to:

• Smartphones and Tablets
• Portable Media Players
• Wearable Technology
• GPS Devices
• Portable Medical Equipment

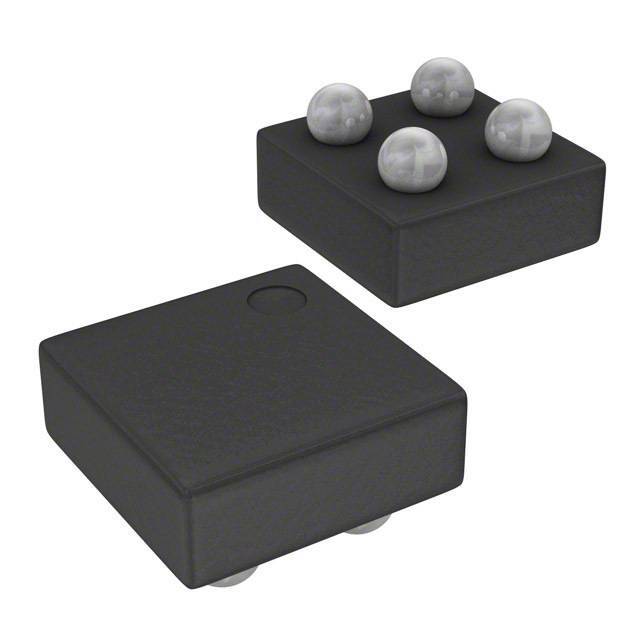

With its compact, low-profile package (1.0 x 1.5 mm WLCSP), the FPF1108 is an excellent choice for designers looking to optimize power management in small form factor devices. Its advanced protection features and high efficiency make it a reliable and energy-conscious solution for modern electronic applications.
