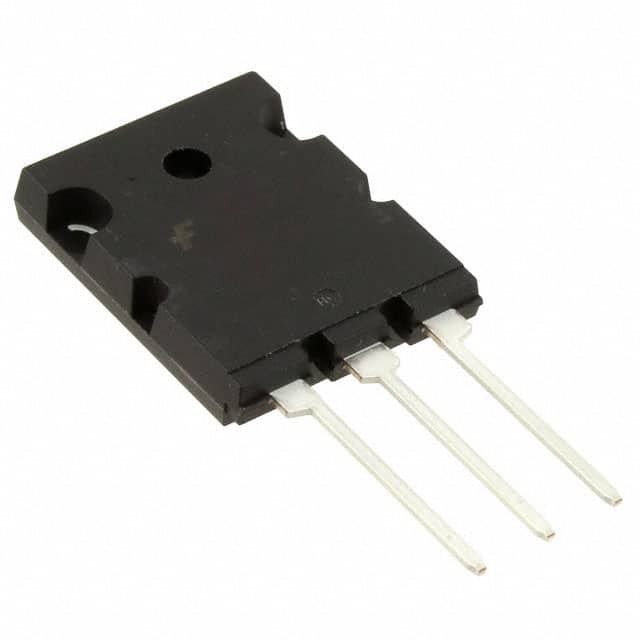

The FGL60N100DTU is a high-performance Insulated Gate Bipolar Transistor (IGBT) developed by ON Semiconductor, a leader in power management and efficiency technologies. This IGBT is designed to meet the demands of a wide range of high-power applications, providing an optimal balance between switching speed and on-state loss, making it an excellent choice for power conversion systems.

Key Features

• High Current Capability: The FGL60N100DTU is capable of handling continuous collector currents up to 60A, making it suitable for high-power applications.
• High Voltage Rating: With a collector-emitter voltage (Vce) of 1000V, this IGBT can be used in circuits with high operating voltages, offering excellent power handling capabilities.
• Low Saturation Voltage: The device features a low on-state collector-emitter saturation voltage (Vce(sat)), reducing conduction losses and improving efficiency.
• Fast Switching Speed: The IGBT has a fast switching speed, which minimizes switching losses and is crucial for applications requiring high-frequency operation.
• Co-Packaged with Free Wheeling Diode: The FGL60N100DTU comes with an integrated free-wheeling diode, providing additional circuit protection and reducing component count.
• High Input Impedance: The high input impedance ensures that the gate drive requirements are minimized, simplifying the drive circuitry.

Applications

The FGL60N100DTU is well-suited for a variety of applications, including:

• Uninterruptible Power Supplies (UPS)
• Motor Drives
• Inductive Heating
• Switching Power Supplies
• Power Factor Correction (PFC) circuits

Reliability and Quality

ON Semiconductor is committed to delivering high-quality products. The FGL60N100DTU is built with robustness in mind, ensuring long-term reliability for critical applications. Its construction adheres to industry standards for IGBTs, and it undergoes rigorous testing to guarantee performance under various conditions.

Environmental Compliance

The FGL60N100DTU from ON Semiconductor meets environmental standards and is compliant with RoHS directives, making it a responsible choice for designers looking to create eco-friendly products.
