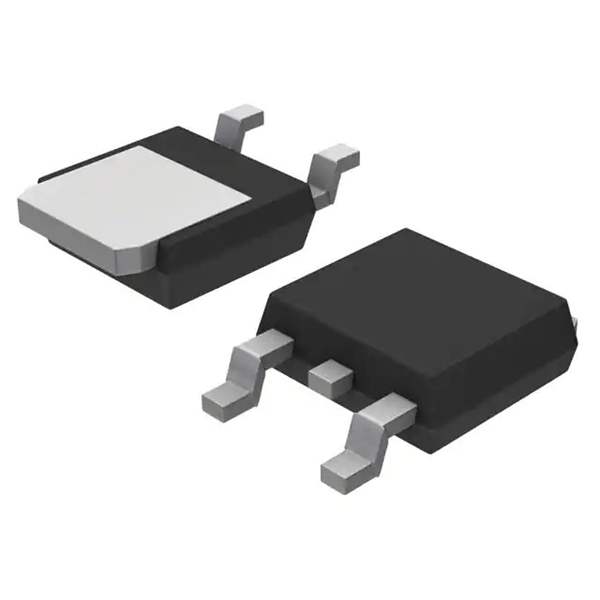

The FGD3040G2-F085V is a cutting-edge Insulated Gate Bipolar Transistor (IGBT) developed by ON Semiconductor, a leading innovator in energy-efficient electronics. This IGBT is designed to offer a high level of performance in power switching applications, combining the simple gate-drive characteristics of a MOSFET with the high-current and low-saturation-voltage capability of a bipolar transistor.

Key Features

• High Current Capability: The FGD3040G2-F085V is capable of handling significant current levels, which makes it suitable for high-power applications.
• Low Saturation Voltage: The device offers a low collector-emitter saturation voltage (V_CE(sat)) to reduce on-state power dissipation and improve efficiency.
• High Input Impedance: With its MOSFET-like input characteristics, this IGBT features a high input impedance, thus requiring less drive power.
• Fast Switching Speed: It is designed for fast switching, which is essential for reducing transition losses and improving the performance of power conversion systems.
• Robustness: The robust construction ensures reliability and longevity, even under demanding operating conditions.

Applications

The FGD3040G2-F085V is ideal for a variety of applications that require efficient power control and conversion. These include, but are not limited to:

• Inverters and Converters
• Uninterruptible Power Supplies (UPS)
• Motor Drives
• Induction Heating
• Power Factor Correction (PFC) circuits

Technical Specifications

ON Semiconductor's FGD3040G2-F085V boasts a collector-emitter voltage (V_CE) rating of 600V, and a continuous collector current (I_C) rating of 60A at 25°C. The device also features a low gate charge (Q_G) which facilitates easier control and efficient operation.

Package and Quality

The FGD3040G2-F085V comes in a TO-247 package, known for its excellent thermal properties and mechanical robustness. ON Semiconductor is committed to the highest standards of quality and reliability, ensuring that each IGBT meets stringent performance criteria before it reaches the customer.

Conclusion

For designers and engineers looking for an efficient, reliable, and high-performance solution for their power management and conversion needs, the FGD3040G2-F085V from ON Semiconductor is an excellent choice. It offers the perfect blend of speed, efficiency, and durability, making it a cornerstone in modern power electronic systems.
