Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr onsemi
Package Tube
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 600 V
Current - Average Rectified (Io) 75A
Voltage - Forward (Vf) (Max) @ If 2.2 V @ 75 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 75 ns
Current - Reverse Leakage @ Vr 100 µA @ 600 V
Mounting Type Through Hole

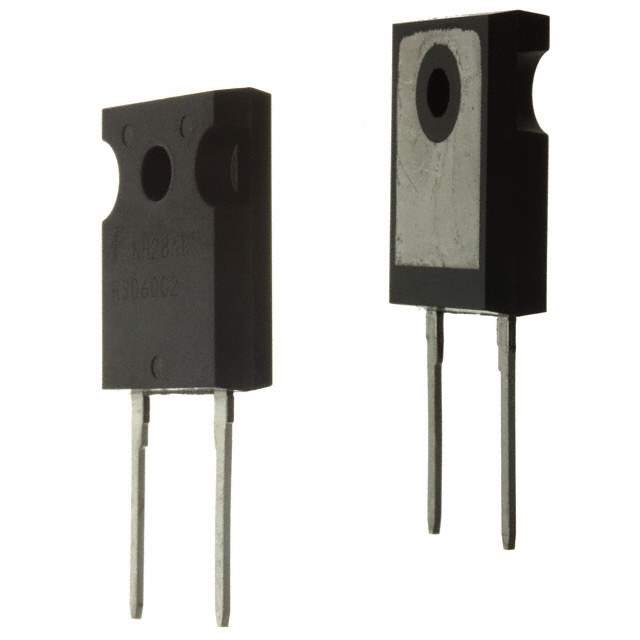

Package / Case TO-247-2
Supplier Device Package TO-247-2
Operating Temperature - Junction -65°C ~ 175°C
Base Product Number FFH75H60
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Names ONSONSFFH75H60S,2156-FFH75H60S-OS
Standard Package 30
Win Source Part Number 967208-FFH75H60S
Ultra Librarian 3D Model Ultra Librarian FFH75H60S CAD Model

Description

The ON Semiconductor FFH75H60S is a cutting-edge silicon carbide (SiC) Schottky diode that offers superior performance and efficiency for a wide range of applications. This high-power diode is designed to meet the demands of modern high-frequency and high-efficiency systems, providing a reliable and efficient solution for power conversion challenges.

Key Features:

  • High Blocking Voltage: With a 600V rating, this diode is capable of handling high voltage applications, making it suitable for a variety of power systems.
  • Low Forward Voltage Drop: The FFH75H60S boasts a low forward voltage drop, which results in reduced power loss and improved system efficiency during operation.
  • Zero Reverse Recovery Time: The absence of reverse recovery time in the FFH75H60S minimizes switching losses and reduces stress on the device during high-speed switching applications.
  • High Surge Current Capability: It is designed to withstand high surge currents, ensuring robust performance and reliability under extreme conditions.
  • Temperature Resistant: The diode operates effectively over a wide temperature range, maintaining performance even in harsh environments.

Applications:

The ON Semiconductor FFH75H60S is ideal for a variety of applications, including:

  • Power supply units (PSUs)
  • Electric vehicle (EV) charging stations
  • Solar inverters
  • Uninterruptible power supplies (UPS)
  • High-frequency power converters

Product Advantages:

Utilizing silicon carbide technology, the FFH75H60S diode offers numerous advantages over traditional silicon-based diodes. These include higher efficiency, faster switching speeds, and improved thermal performance. The device's robust design also ensures long-term reliability, which is critical in high-stress applications where downtime can be costly.

In summary, the ON Semiconductor FFH75H60S is an exceptional choice for designers seeking to improve power density, efficiency, and reliability in their power conversion systems. Its advanced features and robust performance make it a key component in pushing the boundaries of power electronics technology.
