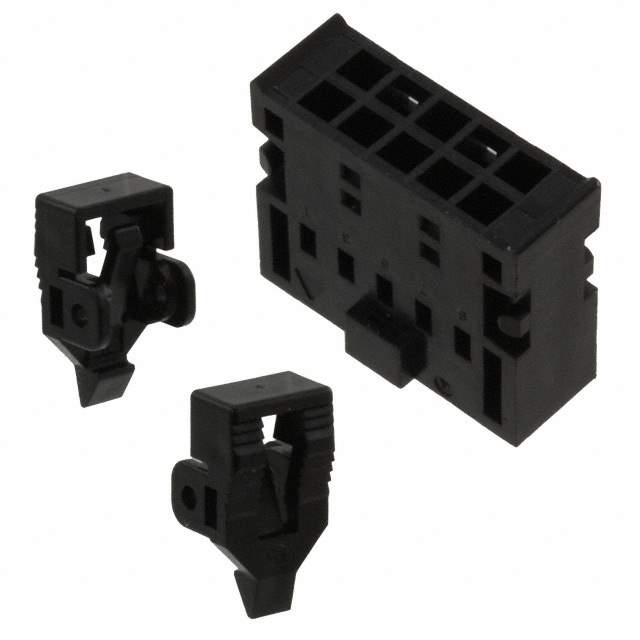

XG5N-101-U Real Image1 XG5N-101-U Real Image2
Same model may have multiple batches, images only for reference.
XG5N-101-U Real Image1 XG5N-101-U Real Image2
XG5N-101-U Real Image1 XG5N-101-U Real Image2
Same model may have multiple batches, images only for reference.

XG5N-101-U

Part No XG5N-101-U
Manufacturer Omron
Catalog Rectangular Connectors
Description CONN RCPT HSG 10POS 2.54MM / 10 Rectangular Connectors - Housings Receptacle Black 0.100" (2.54mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Rectangular Connector Housings
Mfr Omron
Series XG5N
Package Tube
Connector Type Receptacle
Contact Type Female Socket
Number of Positions 10
Pitch 0.100" (2.54mm)
Number of Rows 2
Row Spacing 0.100" (2.54mm)
Mounting Type Free Hanging (In-Line)
Contact Termination Crimp
Fastening Type Latch Lock/Eject Hooks
Color Black
Features -
Insulation Material Polybutylene Terephthalate (PBT), Glass Filled
Temperature Range - Operating -55°C ~ 105°C
Note Contacts Not Included
Base Product Number XG5N
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.8000
Standard Package 100 pcs
Win Source Part Number 1383897-XG5N-101-U
Ultra Librarian 3D Model Ultra Librarian XG5N-101-U CAD Model

Description

The XG5N-101-U is a rectangular connector housing from Omron.

  • Series: XG5N
  • Number of Positions: 10
  • Pitch: 0.100" (2.54mm)
  • Color: Black
  • Locking Type: Latch Lock/Eject Hooks
  • Connector Type: Receptacle
  • Contact Gender: Female Sockets
  • Number of Rows: 2
  • Row Spacing: 0.100" (2.54mm)
  • Material: Polybutylene Terephthalate (PBT) with Glass Filling
  • Operating Temperature: -55°C to 105°C
