ON Semiconductor FDMC86340ET80 Power MOSFET

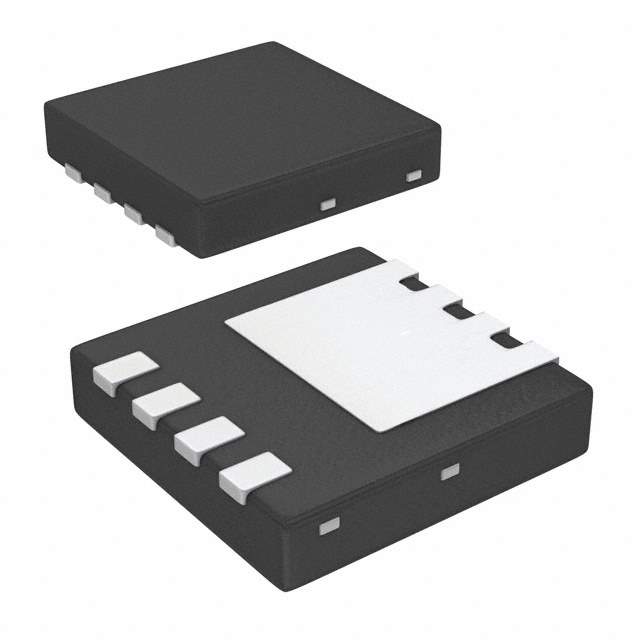

The FDMC86340ET80 is a state-of-the-art Power MOSFET from ON Semiconductor, designed to deliver high-efficiency power management and switching with low on-resistance and fast switching speeds. This product is housed in a compact 5x6 mm PQFN package, making it ideal for space-constrained applications that require high power density and energy efficiency.

Key Features

• Low R_DS(on): The FDMC86340ET80 boasts an exceptionally low on-resistance, which minimizes conduction losses and improves overall efficiency in applications.
• High Continuous Drain Current (I_D): It supports a high continuous drain current, enabling it to handle high power applications with ease.
• High Switching Frequency: With its fast switching capabilities, this MOSFET is suitable for high-frequency power switching applications, contributing to smaller passive components and reduced system size.
• PowerTrench® Technology: ON Semiconductor's proprietary PowerTrench technology is utilized to optimize the device's performance, ensuring low gate charge and capacitance, which leads to reduced switching losses.
• Thermal Management: The PQFN package is designed for excellent thermal performance, ensuring reliability and longevity of the device even under high temperature operating conditions.

Applications

The FDMC86340ET80 is versatile and can be used in a variety of applications, including:

• DC/DC Converters
• Power Supply Modules
• Motor Drives
• Synchronous Rectification
• Battery Management Systems
• Point of Load (POL) Modules

Quality and Environmental Compliance

ON Semiconductor is committed to providing high-quality products that meet rigorous industry standards. The FDMC86340ET80 is manufactured in compliance with RoHS directives, ensuring that it is free from hazardous substances. It is also designed to meet or exceed the performance and reliability expectations required in industrial and automotive applications.

In summary, the FDMC86340ET80 Power MOSFET from ON Semiconductor is an excellent choice for designers looking for a high-performance, energy-efficient solution for their power management needs. Its low on-resistance, high current handling, and fast switching speeds make it a highly effective component in advanced electronic systems.
