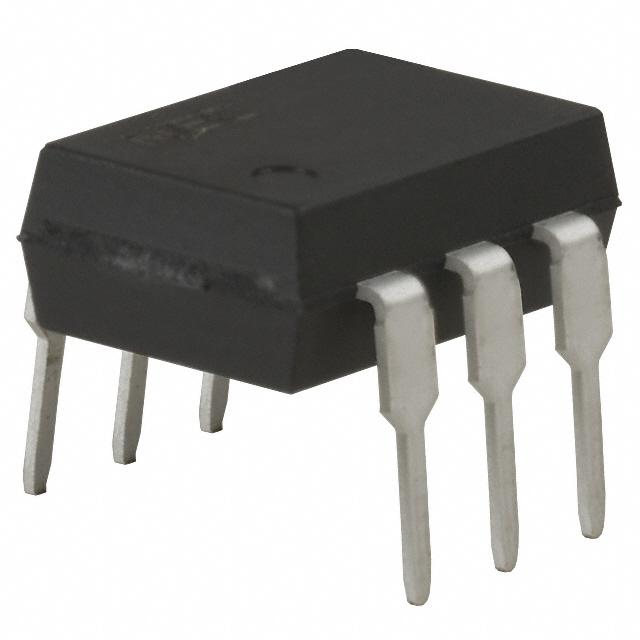

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Relays
Manufacturer CEL
Packaging Tube/Rail
Status Obsolete(EOL)
Circuit SPST-NC (1 Form B)
Output Type AC, DC
Max On Resistance 12 Ohm
Load Current 200mA
Voltage - Input 1.2VDC
Voltage - Load 0 to 400 V
Mounting Through Hole
Termination Style PC Pin
Case / Package 6-DIP
Relay Type Relay
Win Source Part Number 1090129-PS7142-1B-A
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PS7142-1B-A CAD Model

Description

The CEL PS7142-1B-A is a Relay with a circuit configuration of SPST-NC (1 Form B) and a load current of 200mA.

  • Circuit Configuration: SPST-NC (1 Form B)
  • Load Current: 200mA
  • Voltage Input: 1.2VDC
  • Output Type: AC, DC
  • Maximum On Resistance: 12 Ohm
  • Load Voltage: 0 to 400 V
  • Package: 6-DIP
  • Popularity: Medium
  • Mounting Type: Through-hole
  • Termination Style: PC pin
  • Lifecycle Status: Obsolete (EOL)
  • Supply and Demand Status: Balance
