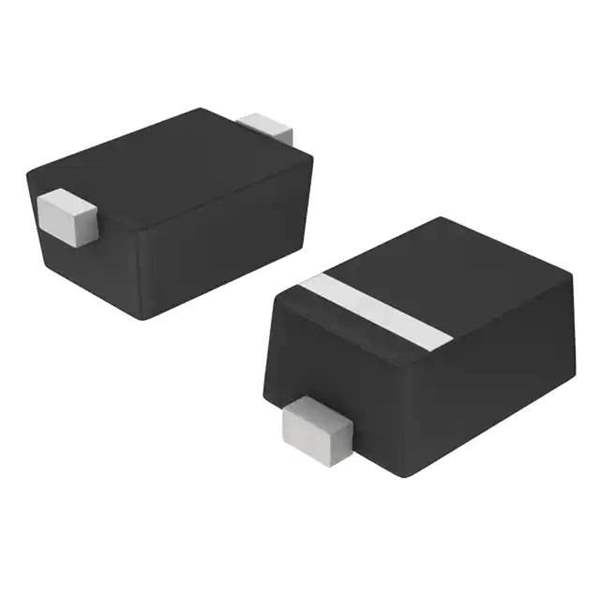

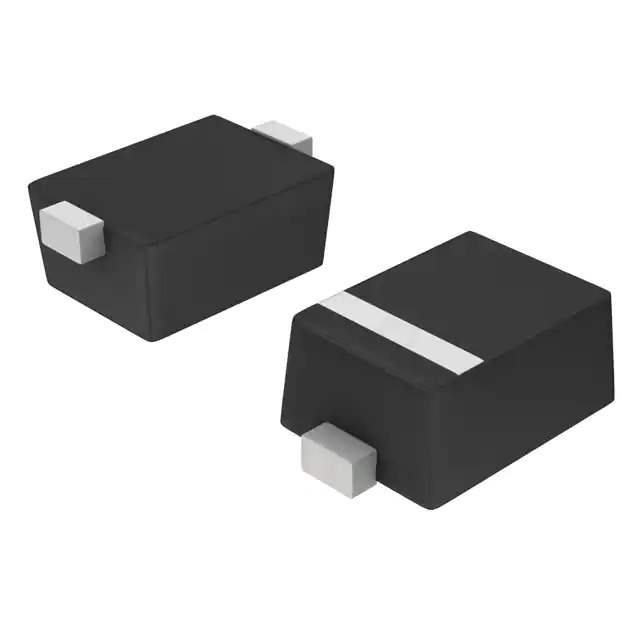

ON Semiconductor ESD7351P2T5G Overview

The ESD7351P2T5G is a high-performance, ultra-low capacitance ESD protection device from ON Semiconductor, designed to safeguard high-speed data lines from electrostatic discharge (ESD) and other voltage-induced transient events. This component is a perfect solution for protecting sensitive electronic circuits in applications such as USB interfaces, HDMI, DisplayPort, and other high-speed data lines where signal integrity is critical.

Key Features

• Low Clamping Voltage: The ESD7351P2T5G provides a very low dynamic resistance and clamping voltage, ensuring that protected components are exposed to minimal stress during transient events.
• Ultra-Low Capacitance: With an ultra-low capacitance of typically 0.3 pF, this device is ideal for high-speed applications where maintaining signal integrity is paramount.
• ESD Protection: It offers excellent ESD protection of >±20 kV (Air Gap Discharge) and >±12 kV (Contact Discharge) as per the IEC61000-4-2 standard, safeguarding sensitive electronics from direct and indirect ESD events.
• Small Package Size: The compact SOD-882 package (also known as UDFN-2) allows for space-saving PCB designs, which is crucial in today's miniaturized electronic assemblies.
• Lead-Free and RoHS Compliant: This product is in compliance with current environmental regulations, being lead-free and RoHS compliant, making it suitable for use in eco-friendly applications.

Applications

The ESD7351P2T5G is highly versatile and can be used in a wide range of applications. It is particularly well-suited for:

• USB 2.0, 3.0, and 3.1 ports
• HDMI 1.4/2.0 interfaces
• Thunderbolt ports
• DisplayPort interfaces
• LVDS interfaces
• High-speed digital lines in consumer electronics

Conclusion

ON Semiconductor's ESD7351P2T5G is a robust ESD protection device that combines low capacitance, high ESD protection levels, and a small form factor. This makes it an excellent choice for engineers looking to enhance the durability and reliability of their high-speed digital applications without compromising on performance or space.
