Products specifications

Category Circuit Protection>TVS - Diodes
Mfr onsemi
Package Tape & Reel (TR)
Product Status Obsolete
Type Steering (Rail to Rail)
Unidirectional Channels 3
Voltage - Reverse Standoff (Typ) 8.2V
Voltage - Clamping (Max) @ Ipp 9.64V (Typ)
Power Line Protection Yes
Applications General Purpose
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting SMD (SMT)
Package / Case 8-UFDFN Exposed Pad
Supplier Device Package 8-UDFN (1.7x1.35)
Base Product Number CM1641
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Names ONSONSCM1641-04D4,2156-CM1641-04D4,2156-CM1641-04D4-ONTR-ND
Standard Package 3,000
Win Source Part Number 1008530-CM1641-04D4
Ultra Librarian 3D Model Ultra Librarian CM1641-04D4 CAD Model

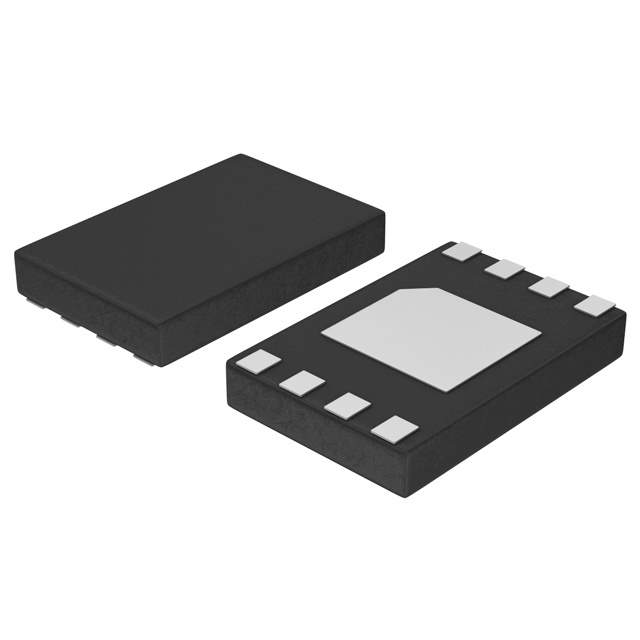

Description

The CM1641-04D4 is a cutting-edge Electrostatic Discharge (ESD) protection component designed by ON Semiconductor, a renowned leader in the semiconductor industry. This device is specifically engineered to safeguard sensitive electronic components from the potentially damaging effects of ESD events.

Key Features

  • Channels: The CM1641-04D4 offers four lines of high-speed ESD protection, making it an ideal choice for multi-line applications.
  • ESD Rating: It boasts an impressive ESD protection level, capable of withstanding ESD strikes of ±15kV (air discharge) and ±8kV (contact discharge) as per the IEC 61000-4-2 standard.
  • Low Capacitance: With a low loading capacitance of 0.5pF per channel, this device is particularly suitable for protecting high-speed data lines without compromising signal integrity.
  • Low Leakage Current: The CM1641-04D4 features a low leakage current, ensuring minimal power loss and increased efficiency in your circuit designs.
  • Package: It is available in a space-saving, lead-free, RoHS-compliant, 10-pin DFN package, which is ideal for applications where board space is at a premium.
  • Applications: This versatile ESD protection device is perfect for high-speed data interfaces such as USB 2.0, HDMI, DVI, and other serial and parallel bus lines in consumer electronics, computing devices, and mobile communications.

Performance and Reliability

The CM1641-04D4 is designed to seamlessly integrate into various electronic systems, providing reliable protection without impacting performance. ON Semiconductor's commitment to quality ensures that this ESD protection device meets the highest industry standards for durability and longevity, giving designers and engineers peace of mind when incorporating it into their products.

Environmental Considerations

ON Semiconductor is dedicated to environmental stewardship, and the CM1641-04D4 reflects this commitment. As a RoHS-compliant product, it is manufactured without the use of hazardous substances, making it a responsible choice for eco-conscious companies looking to minimize their environmental impact.
