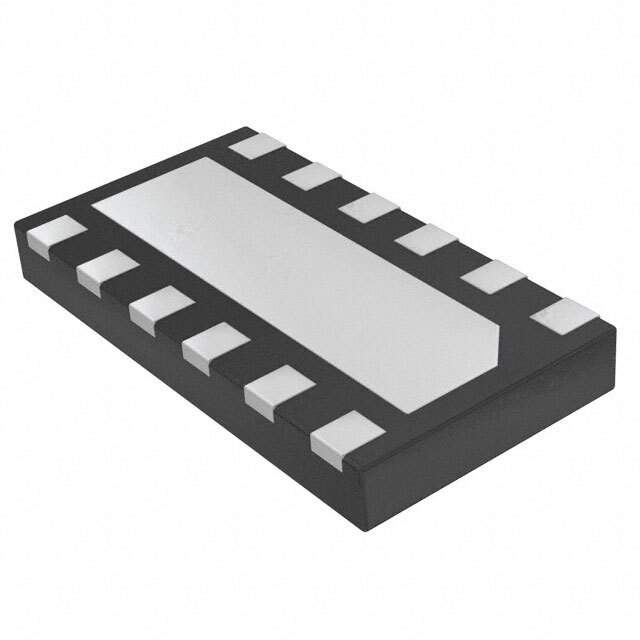

The CM1460-06DE from ON Semiconductor is a state-of-the-art ESD (Electrostatic Discharge) suppressor designed to provide robust protection for electronic devices against electrostatic discharges and other transient voltage events. This component is an essential safeguard for maintaining the integrity and reliability of sensitive circuits in a wide range of applications.

Key Features

• ESD Protection: The CM1460-06DE offers excellent ESD protection, meeting IEC61000-4-2 Level 4 standards, which ensures that devices are shielded from electrostatic events up to 8 kV (contact discharge) and 15 kV (air discharge).
• Low Clamping Voltage: This device provides a low clamping voltage, which is crucial for protecting sensitive components from voltage spikes that could potentially cause damage.
• Low Leakage Current: With its low leakage current, the CM1460-06DE ensures minimal power loss, making it ideal for battery-powered applications where power efficiency is paramount.
• Small Form Factor: The suppressor comes in a compact package, making it suitable for space-constrained designs without compromising on performance.
• Multiple Channel Protection: It features six channels of protection, making it versatile for protecting multiple data lines with a single component.

Applications

The CM1460-06DE is widely used in various applications, including but not limited to:

• Portable Electronics
• Smartphones and Tablets
• Personal Computers and Peripherals
• USB Interfaces and Digital Cameras
• MP3 Players

Technical Specifications

The CM1460-06DE is characterized by its robust technical specifications, which include:

• Package/Case: 10-UDFN
• Number of Channels: 6
• Working Voltage: 5 V
• Clamping Voltage: Low
• ESD Protection Voltage: ±8 kV (Contact), ±15 kV (Air)

With its combination of high-level ESD protection, low clamping voltage, and multi-channel integration, the ON Semiconductor CM1460-06DE is an excellent choice for designers looking to enhance the durability and longevity of their electronic products.
