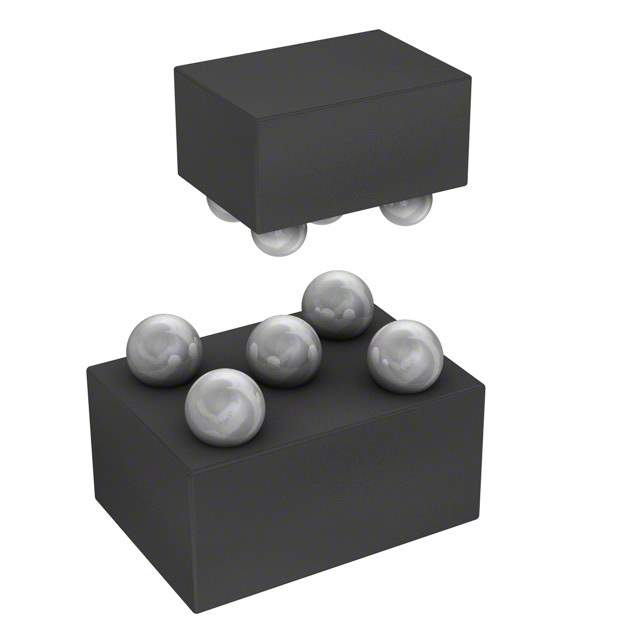

ON Semiconductor CM1220-04CP - ESD Protection Device

The CM1220-04CP from ON Semiconductor is a high-performance, low-capacitance device designed to provide robust electrostatic discharge (ESD) protection for electronic components. This versatile protection device is ideal for safeguarding high-speed data lines and other sensitive circuits in a wide range of applications, from consumer electronics to industrial systems.

Key Features:

• ESD Protection: The CM1220-04CP offers exceptional protection against ESD, exceeding the IEC 61000-4-2 standard (Level 4). It can withstand ESD strikes of ±8 kV contact and ±15 kV air discharge, ensuring the safety and longevity of connected components.
• Low Capacitance: With a typical capacitance of just 0.6 pF per channel, this device ensures signal integrity is maintained, making it suitable for protecting high-speed data lines without compromising performance.
• Multi-Channel Configuration: The CM1220-04CP features a 4-channel configuration, providing simultaneous protection for multiple data or signal lines with a single compact component.
• Small Package Size: Encased in a space-saving SOT-23-6 package, the CM1220-04CP is optimized for applications where board space is at a premium.
• Low Leakage Current: The device boasts a low leakage current, typically less than 1 μA, which contributes to reduced power consumption and improved energy efficiency in electronic systems.
• Wide Operating Temperature Range: It operates effectively across a broad temperature range from -40°C to +85°C, making it suitable for use in various environmental conditions.

Applications:

The CM1220-04CP is designed for use in a variety of applications where ESD protection is critical. These include USB interfaces, HDMI and DisplayPort connections, mobile phones, portable electronics, and other high-speed data interfaces. Its low-profile design and high level of protection make it an essential component for designers looking to enhance the durability and reliability of their electronic products.

Conclusion:

ON Semiconductor's CM1220-04CP is a top choice for engineers and designers seeking a reliable ESD protection solution. With its low capacitance, multi-channel protection, and compact form factor, it provides a powerful shield against ESD events without compromising the performance of the protected circuits. It is a testament to ON Semiconductor's commitment to delivering high-quality protection devices that meet the demands of modern electronic applications.
