CM1219-05SE - ESD Protection Device

The CM1219-05SE from ON Semiconductor is a state-of-the-art ESD protection device designed to safeguard high-speed data lines from electrostatic discharge (ESD) and other voltage-induced transient events. This component is an essential addition to any system where data integrity and device reliability are paramount.

Key Features

• High ESD Protection: The CM1219-05SE offers robust ESD protection exceeding IEC 61000-4-2 Level 4 standards, withstanding ESD events of ±8kV contact discharge, ensuring the safety of your sensitive electronic equipment.
• Low Capacitance: With a low loading capacitance of typically 0.6pF per channel, this device is ideal for protecting high-speed data lines without compromising signal integrity.
• Multiple Channels: This device features a 5-channel configuration, making it suitable for applications such as USB 2.0, HDMI, and other high-speed data interfaces that require multiple lines of defense against ESD.

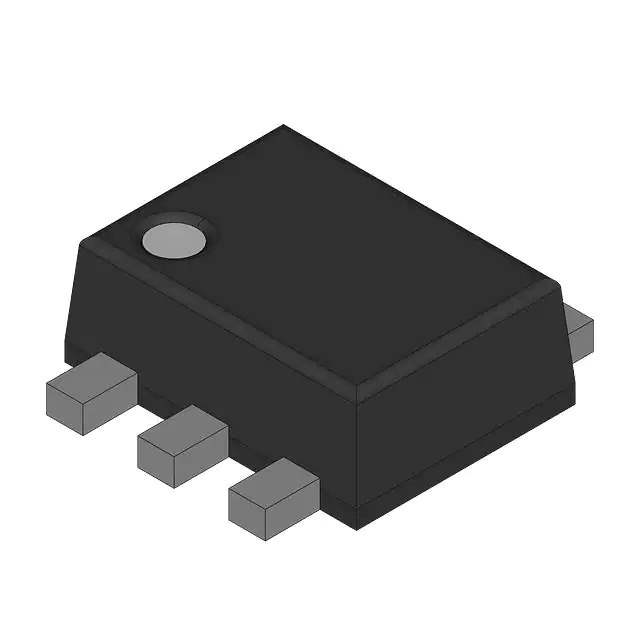

• Small Package: The CM1219-05SE comes in a compact, space-saving SOT-23-6 package, which is perfect for applications where board space is at a premium.
• Low Clamping Voltage: It offers a low clamping voltage, which activates rapidly upon detecting a transient voltage spike, thereby providing immediate protection to downstream components.

Applications

The CM1219-05SE is suitable for a wide range of applications that require reliable ESD protection. It is commonly used in:

• Portable Electronics
• Computer Peripherals
• Consumer Electronics
• Mobile Handsets
• MP3 Players
• Digital Cameras
• USB Interfaces

Quality and Reliability

ON Semiconductor is known for its commitment to quality and reliability, and the CM1219-05SE is no exception. Each device is rigorously tested to meet high standards, ensuring that they perform to specifications in a variety of conditions and applications.

Whether you're designing a new system or upgrading an existing one, the CM1219-05SE from ON Semiconductor offers the protection and performance you need to maintain system integrity and prolong the life of your electronic products.
