The ON Semiconductor CAT28F001N-12B is a high-performance, 1 Megabit Flash memory component that is an essential building block for a wide range of electronic devices. It is designed to offer a reliable and durable non-volatile memory solution for applications that require data storage and retrieval without the need for a constant power supply.

Key Features

• Memory Size: 1 Megabit (128K x 8)
• Access Time: 120 ns
• Operating Voltage: 5V ± 10%

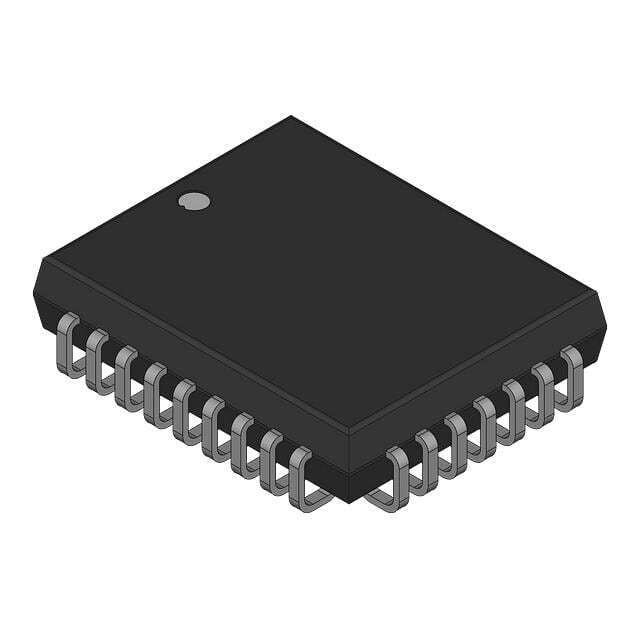

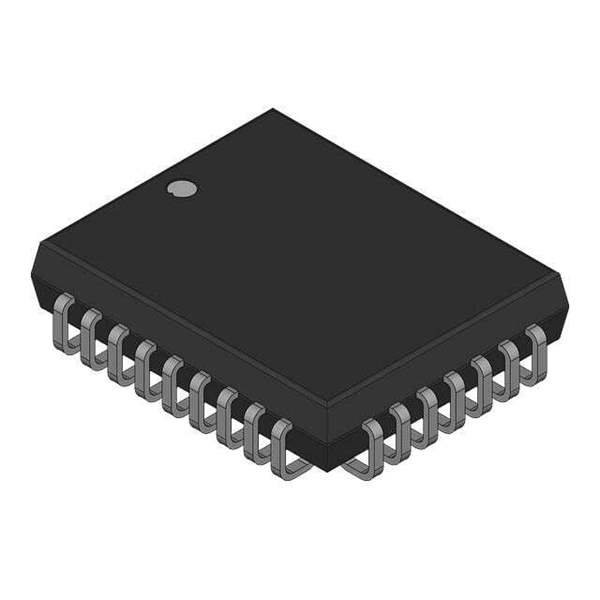

• Package Type: 32-pin PLCC (Plastic Leaded Chip Carrier)
• Temperature Range: -40°C to +85°C
• Endurance: 100,000 program/erase cycles
• Data Retention: 10 years

The CAT28F001N-12B is engineered to provide fast read and write capabilities with an access time of 120 nanoseconds, which allows for quick data retrieval and efficient operation. The memory is organized as 128K bytes, making it suitable for storing boot code, operating systems, or other codebase applications in embedded systems.

Programmable Flexibility

This Flash memory offers a high level of programmable flexibility, which is critical for product development and updates. It is capable of 100,000 program/erase cycles, ensuring a long operational lifespan. The data retention is specified at a minimum of 10 years, making it a reliable choice for long-term applications.

Robust and Durable Design

The CAT28F001N-12B operates over an industrial temperature range, making it robust enough for demanding environments. Its 32-pin PLCC packaging is designed for easy PCB mounting and is commonly used in a variety of industrial and commercial applications.

Applications

With its combination of speed, reliability, and flexibility, the CAT28F001N-12B is well-suited for a variety of applications, including:

• Embedded systems
• Automotive electronics
• Telecommunications
• Industrial control systems
• Consumer electronics

In summary, the ON Semiconductor CAT28F001N-12B Flash memory is a versatile and reliable choice for designers and engineers looking for a non-volatile memory solution with a proven track record of performance and durability.
