ON Semiconductor 74LVX4245QSCX: A Versatile Octal Dual-Supply Transceiver

The 74LVX4245QSCX from ON Semiconductor stands out as a high-performance octal dual-supply transceiver designed to address the needs of multi-voltage systems. This integrated circuit facilitates bidirectional communication between two buses of differing voltage levels, making it an essential component for interfacing operations in mixed 3.3V/5V systems.

Constructed with advanced low-voltage CMOS technology, the 74LVX4245QSCX offers robust features that include a wide operating voltage range, which allows for translation between 2.7V and 3.6V on the A side and 4.5V to 5.5V on the B side. This flexibility ensures compatibility with a broad spectrum of digital logic levels, thereby simplifying system design and enhancing functionality.

The device is equipped with Dual-In-Line Package (DIP) switches that enable individual direction control for each channel. This feature provides designers with the capability to precisely manage the data flow between the two voltage domains, ensuring efficient and reliable data transfer. Moreover, the 74LVX4245QSCX boasts a high-drive output current, which is ideal for driving heavy loads or for use in bus-terminated transmission lines.

With its low quiescent current and power-down protection on inputs and outputs, the 74LVX4245QSCX ensures minimal power consumption and safeguards against any potential damage when the device is powered off. Additionally, the transceiver's inputs and outputs are overvoltage tolerant, providing further protection against unexpected voltage spikes that could otherwise compromise the integrity of the system.

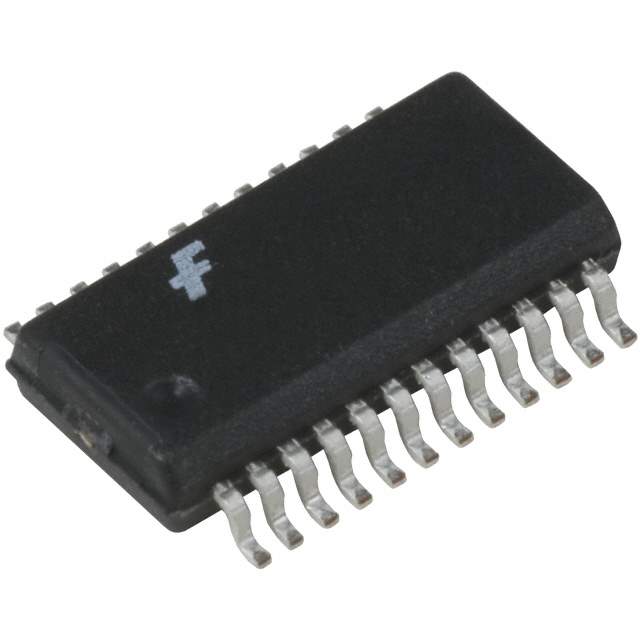

The 74LVX4245QSCX is encapsulated in a space-saving QSOP package, making it an excellent choice for applications where board space is at a premium. Typical applications for this transceiver include data communication in mixed-voltage systems, such as servers, networking equipment, and telecommunication interfaces.

With its combination of dual-supply voltage translation, bidirectional interface, low power consumption, and robust protection features, the ON Semiconductor 74LVX4245QSCX is a versatile and reliable solution for modern electronic systems requiring seamless communication between different logic domains.
