The 2N5684 from ON Semiconductor is a high-power bipolar junction transistor (BJT) designed for general-purpose power amplification and switching applications. This robust transistor offers a combination of high current capacity and voltage handling capability, making it an ideal choice for a wide range of industrial, commercial, and entertainment applications.
The 2N5684 is capable of handling continuous collector currents up to 50A, with a peak collector current rating of 80A. This allows it to drive high-current loads with ease. Additionally, it has a collector-emitter voltage (VCEO) rating of 60V, providing a good margin for applications that experience voltage spikes or surges.
This power transistor is known for its high gain, with a minimum hFE of 15 when the collector current is at 25A, ensuring efficient operation even at high currents. The device also features a low saturation voltage, which minimizes power loss and improves efficiency in switching applications.

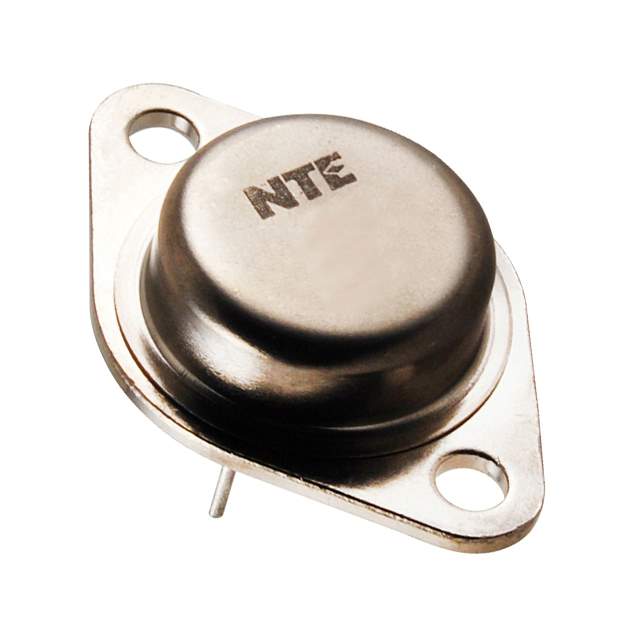

The 2N5684 is housed in a TO-3 package, which is a metal can package renowned for its excellent thermal properties. The robust construction of the TO-3 package ensures that the transistor can withstand harsh environments and provides superior heat dissipation capabilities, which is critical for maintaining the reliability and longevity of the device under high power operation.
ON Semiconductor has designed the 2N5684 with reliability in mind. It is capable of operating within a junction temperature range of -65°C to +200°C, making it suitable for use in extreme conditions. The transistor also features a fast switching response, which is essential for applications that require quick transitions between on and off states.
Whether you're designing power supplies, motor controllers, or audio amplifiers, the 2N5684 from ON Semiconductor is a reliable and efficient component that will help ensure the success of your project. With its impressive current handling, voltage rating, and thermal performance, this power transistor is a solid choice for demanding power applications.
