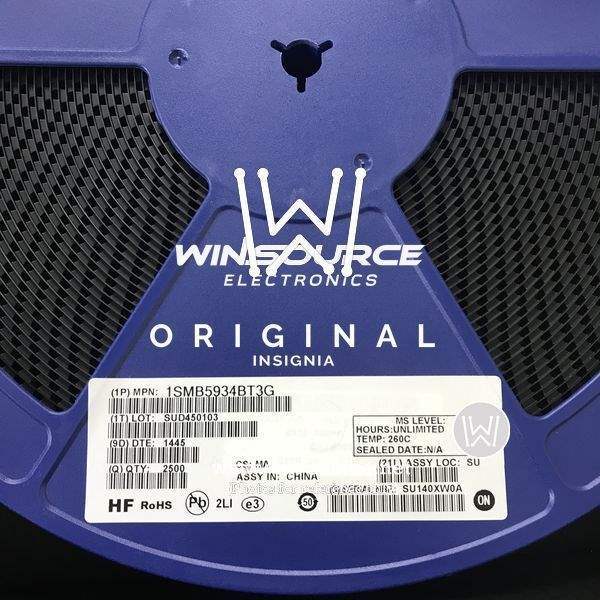

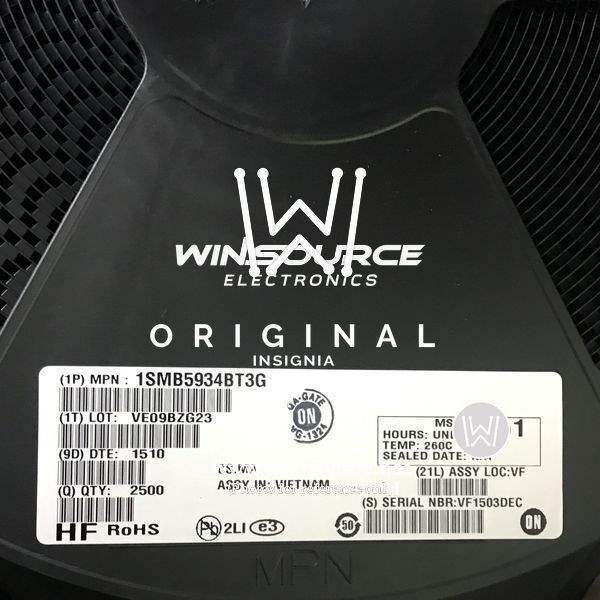

Product Overview: 1SMB5934BT3G - ON Semiconductor

The 1SMB5934BT3G is a high-quality Zener voltage regulator diode designed and manufactured by the reputable ON Semiconductor. This electronic component is engineered to provide precise voltage regulation, making it an ideal choice for a wide range of applications where voltage stabilization is critical. It is commonly used in power supply circuits, voltage reference applications, and as a protective device for sensitive electronics.

Key Features

• Power Dissipation: The 1SMB5934BT3G is capable of handling up to 3 watts of power dissipation, allowing it to regulate higher power levels efficiently.
• Zener Voltage Range: This device offers a broad Zener voltage range from 3.3V to 33V, providing versatile options to meet various circuit requirements.
• Package: Encased in a SMB surface-mount package, the 1SMB5934BT3G is designed for compact and automated assembly processes, making it suitable for high-volume production.
• Thermal Resistance: It features a low thermal resistance, ensuring that the device operates reliably and maintains performance over a wide temperature range.
• Tolerance: The Zener voltage tolerance is ±5%, ensuring accurate voltage regulation for sensitive components and systems.

Applications

The versatility of the 1SMB5934BT3G allows it to be used in various applications, including:

• Consumer electronics
• Automotive systems
• Telecommunication devices
• Computer peripherals
• Industrial equipment

Quality and Reliability

ON Semiconductor is known for its commitment to quality, and the 1SMB5934BT3G is no exception. It is manufactured to meet stringent industry standards, ensuring high reliability and performance. The device also features a robust construction that is designed to withstand harsh environments and provide long-term stability.

Environmental Compliance

The 1SMB5934BT3G complies with RoHS (Restriction of Hazardous Substances) directives, making it an environmentally friendly choice for companies looking to minimize their ecological footprint.

In summary, the 1SMB5934BT3G Zener voltage regulator diode from ON Semiconductor is a high-performance solution for precise voltage regulation needs. Its robust design, wide voltage range, and compliance with environmental standards make it an excellent choice for designers and engineers in various industries.
