1N6287A

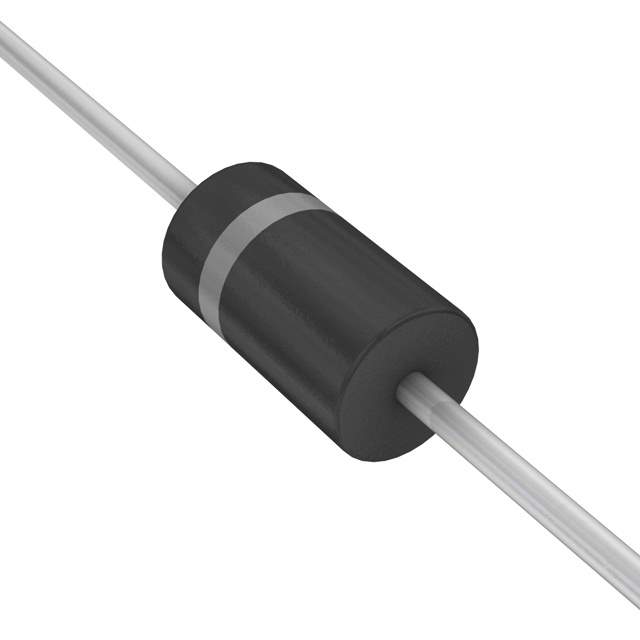

Part No 1N6287A
Manufacturer ON Semiconductor
Catalog TVS - Diodes
Description GLASS PASSIVATED JUNCTION TRANSIENT VOLTAGE SUPPRESSOR | TVS DIODE 40.2V 64.8V AXIAL
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer ON Semiconductor
Packaging Bulk
Status Obsolete
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff 40.2V
Voltage - Breakdown (Minimum) 44.7V
Voltage - Clamping (Maximum) at Ipp 64.8V
Power - Peak Pulse 1500W (1.5kW)
Power Line Protection No
Applications General Purpose
Temperature Range - Operating -65°C ~ 175°C
Mounting Style Through Hole
Manufacturer Package DO-201AD, Axial
Supplier Device Package Axial
Family Part Number 1N6287A
Manufacturer Pack Quantity 500
MSL Level 1 (Unlimited)
Win Source Part Number 1122120-1N6287A
Manufacturer Homepage www.transyselectronics.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 1N6287A CAD Model

Description

ON Semiconductor 1N6287A Diode

The 1N6287A from ON Semiconductor is a robust transient voltage suppression (TVS) diode, designed to protect sensitive electronic equipment from voltage spikes and transients induced by lightning and other sudden voltage events. This component is a reliable solution for safeguarding voltage-sensitive circuits by clamping unwanted high-energy surges to prevent damage to the system.

Key Features:

  • Peak Pulse Power: The 1N6287A offers an impressive peak pulse power dissipation of 1500 Watts at 10/1000 μs waveform, ensuring effective protection against high power surges.
  • Standoff Voltage: It has a standoff voltage of 15 volts, which allows it to remain non-conductive under normal operating conditions until a voltage spike occurs.
  • Breakdown Voltage: With a minimum breakdown voltage of 16.7 volts, the diode ensures a quick response once the standoff voltage is exceeded.
  • Clamping Voltage: The maximum clamping voltage is specified at 25.2 volts, providing a safe voltage limit to protect sensitive components.
  • Low Leakage Current: It features a low leakage current, minimizing power loss when the device is in standby mode and enhancing overall energy efficiency.
  • Fast Response Time: The diode's response time is typically less than 1 picosecond from 0 volts to BV min, offering immediate protection against transient overvoltages.

Applications:

The 1N6287A is suitable for a wide range of applications where transient voltage protection is critical. It is commonly used in:

  • Industrial systems
  • Communication devices
  • Consumer electronics
  • Power supply units
  • Automotive electronics

With its robust construction and reliable performance, the ON Semiconductor 1N6287A TVS diode is an essential component for designers looking to enhance the durability and longevity of their electronic products against voltage transients.

Quality and Reliability:

ON Semiconductor is known for its commitment to quality, and the 1N6287A is manufactured to meet high industry standards, ensuring reliable operation under a variety of conditions. Its robust packaging also allows for easy integration into a wide range of electronic assemblies.
