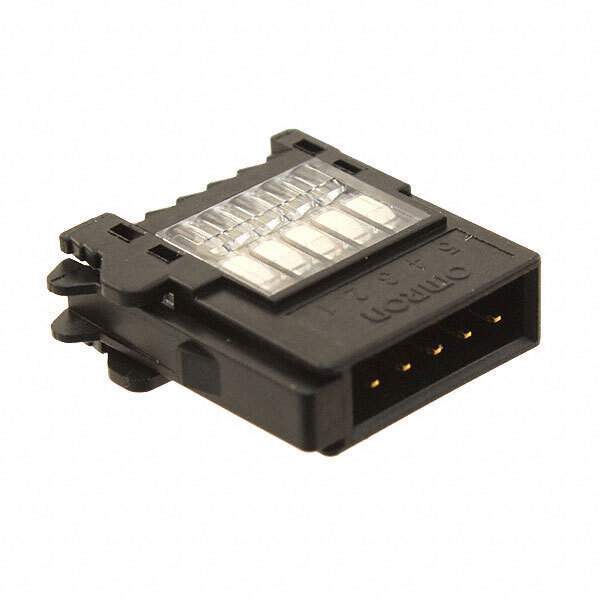

XN2A-1570 Real Image
Same model may have multiple batches, images only for reference.

XN2A-1570

Part No XN2A-1570
Manufacturer Omron
Catalog Rectangular Connectors
Description CONN PLUG 5POS IDC 20-28AWG GOLD / 5 Position Rectangular Plug Connector Spring Clamp Gold 20-28 AWG
Datasheet
XN2A-1570 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Free Hanging, Panel Mount
Mfr Omron Electronics Inc-EMC Div
Series XN2
Package Bulk
Connector Type Plug
Contact Type Male Pin
Number of Positions 5
Pitch 0.079" (2.00mm)
Number of Rows 1
Mounting Type Free Hanging (In-Line)
Fastening Type Latch Lock
Cable Termination Spring Clamp
Wire Type Discrete
Wire Gauge 20-28 AWG
Contact Finish Gold
Contact Finish Thickness 8.00µin (0.203µm)
Color Black
Base Product Number XN2A
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.8000
Other Names 2266-XN2A-1570,XN2A1570,OR1022
Standard Package 126
Win Source Part Number 1105879-XN2A-1570
Ultra Librarian 3D Model Ultra Librarian XN2A-1570 CAD Model

Description

The Omron 1105879-XN2A-1570 is a 5-position rectangular connector that is designed for use in various electronic applications.

  • Positions: 5
  • Pitch: 0.079 inches
  • Color: Black
  • Fastening Type: Latch Lock
  • Contact Finish: Gold
  • Contact Finish Thickness: 8.00μin
  • Wire Gauge: 20-28 AWG
  • Cable Termination: Spring Clamp
  • RoHS Compliant: Yes
