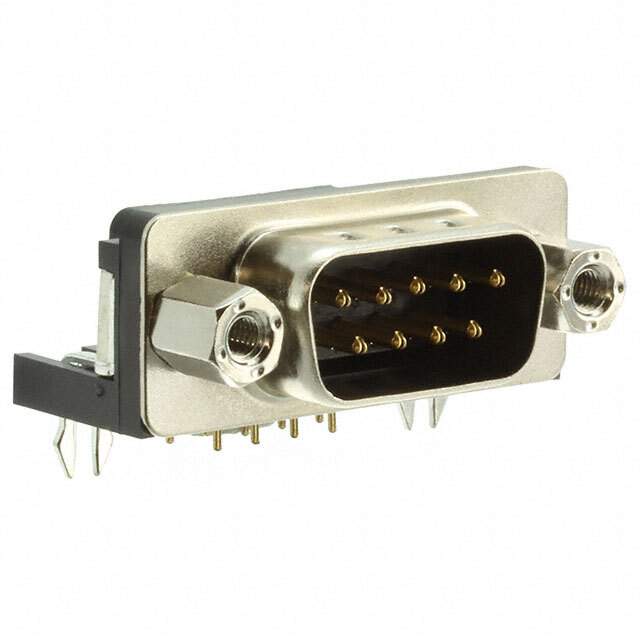

XM2C-0942-112L Real Image
Same model may have multiple batches, images only for reference.

XM2C-0942-112L

Part No XM2C-0942-112L
Manufacturer Omron
Catalog D-Sub, D-Shaped Connectors - Assemblies
Description CONN D-SUB PLUG 9POS R/A SLDR / 9 Position D-Sub Plug, Male Pins Connector
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - D-Sub, D-Shaped Connectors - D-Sub Connector Assemblies
Mfr Omron Electronics Inc-EMC Div
Series XM2C
Package Tray
Product Status Obsolete
Connector Style D-Sub
Connector Type Plug, Male Pins
Number of Positions 9
Number of Rows 2
Mounting Type Through Hole, Right Angle
Shell Size, Connector Layout 1 (DE, E)
Contact Type Signal
Flange Feature Mating Side, Female Screwlock (M2.6)
Termination Solder
Shell Material, Finish Steel, Nickel Plated
Contact Finish Gold
Contact Finish Thickness Flash
Material Flammability Rating UL94 V-0
Current Rating (Amps) 3A
Features Board Lock, Grounding Indents, Shielded
Voltage Rating 300V
Color Black
Dielectric Material Polybutylene Terephthalate (PBT) , Glass Filled
Contact Material Brass
Temperature Range - Operating -25°C ~ 105°C
Base Product Number XM2C
Standard Package 90
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1339616-XM2C-0942-112L
Ultra Librarian 3D Model Ultra Librarian XM2C-0942-112L CAD Model

Description

The XM2C series connector from Omron Electronics Inc-EMC Div is a D-sub connector assembly with a plug type and male pins.

  • Connector Type: D-sub
  • Assembly Type: Connector
  • Plug/Socket: Plug
  • Contact Gender: Male Pins
  • Number of Positions: 9
  • Contact Finish: Gold
  • Contact Finish Thickness: Flash
  • Shielded: Yes
  • Grounding: Grounding Indents
  • Board Lock: Yes
  • Shell Material: Nickel Plated Steel
  • Dielectric Material: Polybutylene Terephthalate (PBT), Glass-Filled
  • Mounting Type: Through Hole, Right Angle
  • Operating Temperature: -25°C to 105°C
  • Flammability Rating: UL94 V-0
  • Standard Package: 90
