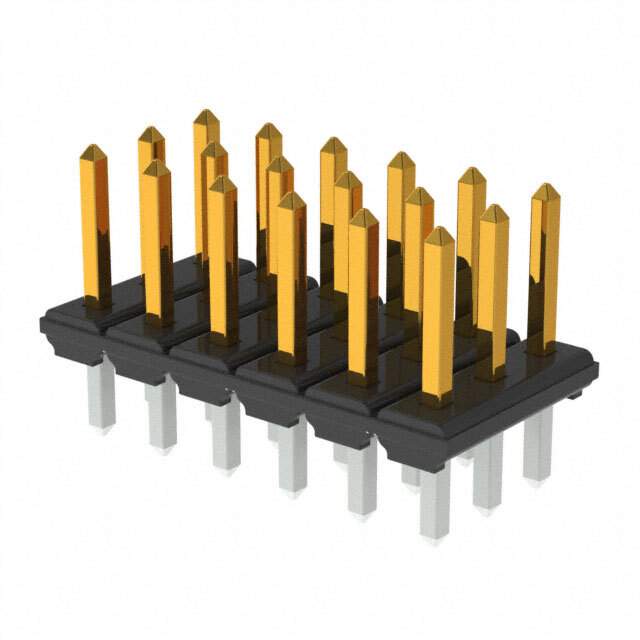

XJ8D-1811

Name: XJ8D-1811
Brand: Omron
SKU: 1178691
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	XJ8D-1811
Manufacturer	Omron
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 18POS 2.54MM / Connector Header Through Hole 18 position 0.100" (2.54mm)
Datasheet	XJ8D-1811 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	Omron Electronics Inc-EMC Div
Series	XJ8
Package	Bulk
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	18
Number of Rows	3
Row Spacing - Mating	0.100" (2.54mm)
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Unshrouded
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.169" (4.30mm)
Contact Length - Post	0.110" (2.79mm)
Overall Contact Length	0.339" (8.60mm)
Insulation Height	0.059" (1.50mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	5.90µin (0.150µm)
Contact Material	Brass, Nickel
Insulation Material	Polyphenylene Sulfide (PPS), Glass Filled
Temperature Range - Operating	-55°C ~ 105°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	2A
Voltage Rating	300V
Base Product Number	XJ8D
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	XJ8D1811,XJ8D1811-ND
Standard Package	100
Win Source Part Number	1178691-XJ8D-1811
Ultra Librarian 3D Model	Ultra Librarian XJ8D-1811 CAD Model

Description

The XJ8D-1811 is a rectangular connector header with 18 male pins manufactured by Omron Electronics Inc-EMC Div.

Supply and Demand Status: Unlimited
Material: Polyphenylene Sulfide (PPS), Glass-Filled
Voltage Rating: 300V
Current Rating: 2A
Application: Board-to-Board or Cable
