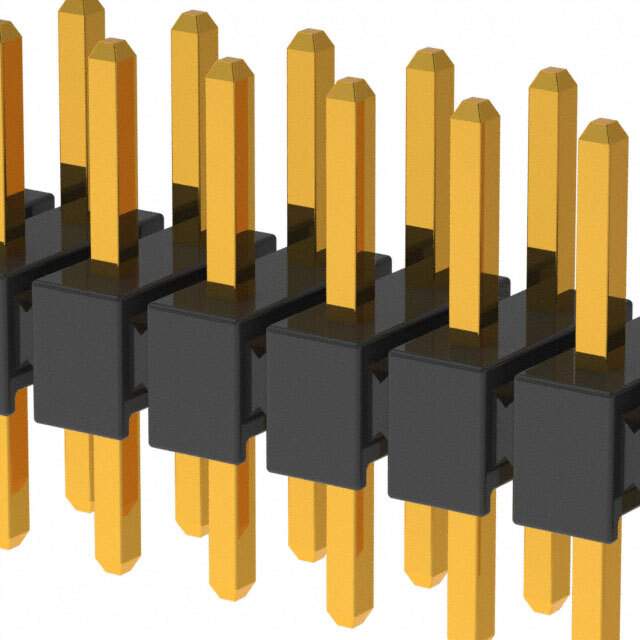

XG8T-1431

Name: XG8T-1431
Brand: Omron
SKU: 1097692
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	XG8T-1431
Manufacturer	Omron
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 14POS 2.54MM / Connector Header Through Hole 14 position 0.100" (2.54mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	Omron Electronics Inc-EMC Div
Series	XG8
Package	Bulk
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	14
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Unshrouded
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.169" (4.30mm)
Contact Length - Post	0.118" (3.00mm)
Overall Contact Length	0.386" (9.80mm)
Insulation Height	0.098" (2.50mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	5.90µin (0.150µm)
Contact Finish - Post	Gold
Contact Material	Brass, Nickel
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Temperature Range - Operating	-55°C ~ 105°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	2A
Voltage Rating	300V
Contact Finish Thickness - Post	5.90µin (0.150µm)
Base Product Number	XG8T
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	2266-XG8T-1431,XG8T1431,XG8T-1431-ND,OR1103
Standard Package	200
Win Source Part Number	1097692-XG8T-1431
Ultra Librarian 3D Model	Ultra Librarian XG8T-1431 CAD Model

Description

The Omron Electronics Inc-EMC Div XG8 series connector with Win Source Part Number 1097692-XG8T-1431 is a board-to-board or cable connector with a header connector type and male pin contact type.

Positions: 14
Rows: 2
Pitch-Mating: 0.100 inches (2.54mm)
Contact Finish Thickness (Mating): 5.90µin (0.150µm)
Contact Finish Thickness (Post): 5.90µin (0.150µm)
Insulation Height: 0.098 inches (2.50mm)
Operating Temperature Range: -55°C to 105°C
Current Rating: 2A
Manufacturer Pack Quantity: 200
