Same model may have multiple batches, images only for reference.

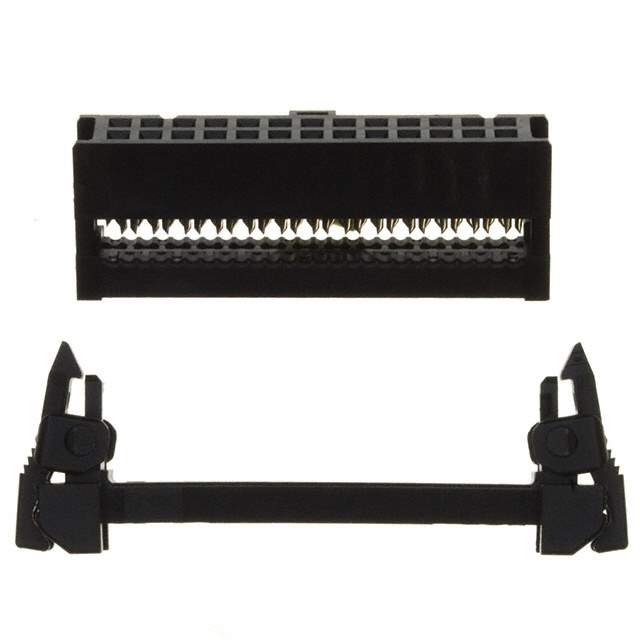

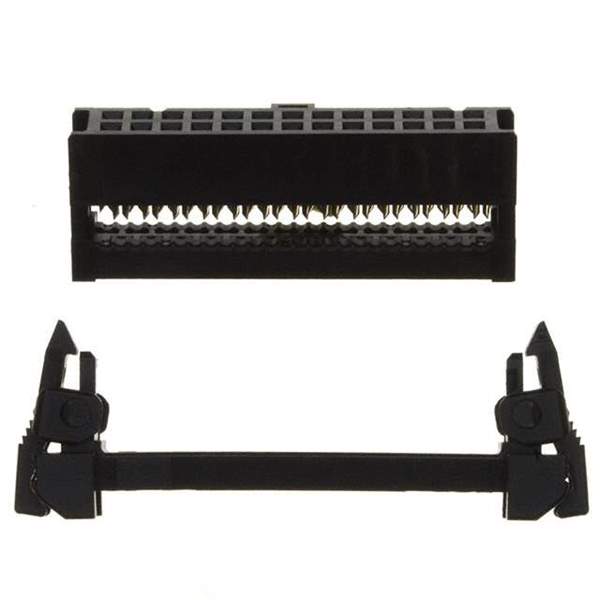

XG4M-2630-U Real Image
Same model may have multiple batches, images only for reference.

XG4M-2630-U

Part No XG4M-2630-U
Manufacturer Omron
Catalog Rectangular Connectors
Description CONN RCPT 26POS IDC 28AWG GOLD  /  26 Position Rectangular Receptacle Connector IDC Gold 28 AWG
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Free Hanging, Panel Mount
Mfr Omron Electronics Inc-EMC Div
Series XG4
Package Tray
Connector Type Receptacle
Contact Type Female Socket
Number of Positions 26
Pitch 0.100" (2.54mm)
Number of Rows 2
Row Spacing 0.100" (2.54mm)
Mounting Type Free Hanging (In-Line)
Fastening Type Latch Lock/Eject Hooks
Cable Termination IDC
Wire Type Ribbon Cable
Wire Gauge 28 AWG
Features Feed Through, Polarizing Key, Strain Relief
Contact Finish Gold
Contact Finish Thickness 5.90µin (0.150µm)
Color Black
Base Product Number XG4M
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4051
Other Names XG4M2630U,XG4M2630UBYOMZ,2266-XG4M-2630-U,XG4M-2630-U BY OMZ,OR920,XG4M2630U-ND
Standard Package 80
Win Source Part Number 1178588-XG4M-2630-U
Ultra Librarian 3D Model Ultra Librarian XG4M-2630-U CAD Model

Description

The XG4M-2630-U is a 26-position female socket connector manufactured by Omron Electronics Inc-EMC Div.

  • Application: Ribbon Cables
  • Series: XG4
  • Pitch: 0.100 inches
  • Fastening Type: Latch Lock/Eject Hooks
  • Halogen-Free: Yes
