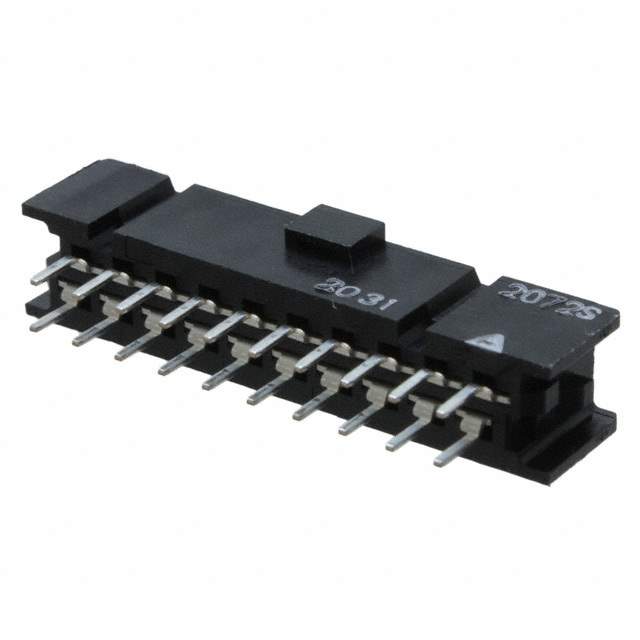

XG4H-2031

Name: XG4H-2031
Brand: Omron
SKU: 1349514
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	XG4H-2031
Manufacturer	Omron
Catalog	Rectangular Connectors
Description	CONN RCPT 20POS 0.1 GOLD PCB / 20 Position Receptacle Connector 0.100" (2.54mm) Through Hole Gold
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Omron Electronics Inc-EMC Div
Series	XG4
Package	Bulk
Connector Type	Receptacle
Contact Type	Female Socket
Style	Board to Board
Number of Positions	20
Number of Positions Loaded	All
Pitch - Mating	0.100" (2.54mm)
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Latch Holder
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	5.90µin (0.150µm)
Insulation Color	Black
Insulation Height	0.283" (7.19mm)
Contact Length - Post	0.122" (3.10mm)
Temperature Range - Operating	-55°C ~ 105°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Mated Stacking Heights	9.7mm, 10.1mm
Features	Polarizing Key
Current Rating (Amps)	3A
Voltage Rating	300VAC
Insulation Material	Polybutylene Terephthalate (PBT) , Glass Filled
Contact Shape	Square
Contact Material	Phosphor Bronze
Contact Finish Thickness - Post	78.7µin (2.00µm)
Base Product Number	XG4H
Standard Package	100
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1349514-XG4H-2031
Ultra Librarian 3D Model	Ultra Librarian XG4H-2031 CAD Model

Description

The 1349514-XG4H-2031 is a 20-position rectangular connector header from the XG4 series by Omron Electronics Inc-EMC Div.

Pitch: 0.100" (2.54mm)
Termination Style: Solder
Contact Finish: Gold
Contact Finish Thickness: 5.90µin (0.150µm)
Voltage Rating: 300VAC
Current Rating: 3A
Mounting Type: Through-Hole
